RF Receiver, RF Transmitter, and RF Transceiver finished units are all essential components in wireless communication systems, each with its distinct role. These devices are used to send, receive, or both send and receive radio frequency signals for various applications such as telecommunications, broadcasting, and wireless data transfer.

RF Receiver:

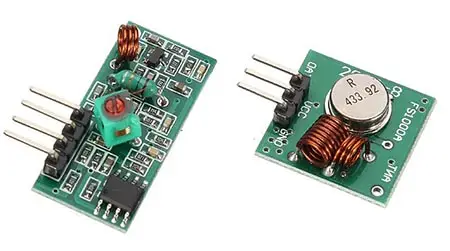

RF Receiver, Transmitter, and Transceiver Finished Units

An RF Receiver is a finished unit designed to capture incoming radio frequency signals and convert them into a usable form for further processing, such as demodulation and decoding. The receiver extracts the information transmitted over the air and processes it for output.

Key Functions:

• Signal Reception: The RF receiver receives radio signals via an antenna and amplifies them using a low noise amplifier (LNA).
• Frequency Conversion: Often, the received RF signal is down-converted to a lower intermediate frequency (IF) or baseband for easier processing.
• Demodulation: The receiver demodulates the RF signal, extracting the encoded data (voice, video, or digital information) for further use.
• Filtering: The receiver filters out unwanted signals or noise to ensure only the intended signal is processed.

Applications:

• Radio and Television Receivers: Used in home entertainment systems.
• Mobile Phones: Receive cellular signals for communication.
• Satellite Receivers: Used for receiving satellite signals for navigation or broadcasting.
• IoT Devices: Receiving signals from sensors or other wireless devices.

RF Transmitter:

An RF Transmitter is a finished unit that generates and sends radio frequency signals over the air. It is used in applications where data, voice, or video needs to be transmitted to other devices or systems.

Key Functions:

• Signal Generation: The transmitter generates an RF signal, usually from a baseband signal (such as audio or digital data).
• Modulation: The baseband signal is modulated onto the carrier frequency to encode the information, typically using modulation techniques like AM, FM, or QAM.
• Power Amplification: The modulated signal is amplified to the necessary power level to travel over the air.
• Antenna Transmission: The amplified RF signal is fed to an antenna, which broadcasts it over a specific frequency range.

Applications:

• Broadcasting: Transmitting TV or radio signals.
• Cellular Base Stations: Sending signals to mobile phones.
• Wi-Fi Routers: Sending wireless data to connected devices.
• Radar and Communication Systems: Transmitting radar signals for detection and navigation.

RF Transceiver:

An RF Transceiver is a finished unit that combines both the functions of a transmitter and a receiver into a single component. It can both send and receive radio frequency signals, making it versatile for two-way communication systems.

Key Functions:

• Bidirectional Communication: A transceiver can both transmit and receive signals, switching between the two roles depending on whether the device is sending or receiving data.
• Signal Processing: Like receivers and transmitters, transceivers handle modulation, demodulation, and frequency conversion but can handle both directions of data flow.
• Duplex Communication: Some transceivers support full-duplex (simultaneous send and receive) or half-duplex (one at a time) communication modes.

Applications:

• Mobile Phones: Both receive and transmit voice, text, and data.
• Wi-Fi and Bluetooth Devices: Transceivers are used for two-way communication in wireless local area networks (WLAN) and personal area networks (PAN).
• Satellite Communication: Transceivers are often used in satellite systems where bidirectional communication is essential.
• Two-Way Radios: Used in walkie-talkies and other communication systems that require both sending and receiving capabilities.

Differences Between the Units:

• RF Receiver: Only receives and processes incoming RF signals.
• RF Transmitter: Only transmits RF signals, modulating and amplifying them for transmission.
• RF Transceiver: Combines the functions of both transmitter and receiver, allowing bidirectional communication.

Key Considerations for All Units:

• Power Consumption: Low power consumption is critical, especially for mobile and battery-operated devices.
• Frequency Range: Devices are typically designed to operate over specific frequency bands, such as those for Wi-Fi, Bluetooth, cellular networks, or satellite communication.
• Size and Integration: Transceivers, in particular, are often highly integrated into compact packages, allowing for smaller, more portable devices.
• Data Rate and Modulation: Higher data rates and advanced modulation schemes allow for faster and more reliable communication.

Summary:

• RF Receiver is designed to receive and process signals.
• RF Transmitter is responsible for generating and sending signals.
• RF Transceiver is a combined unit that performs both functions, enabling two-way communication.

Each of these components plays a vital role in modern wireless communication systems, from mobile phones and wireless networks to satellite communication and radar systems.
