Description of RFID Antennas

An RFID antenna is a crucial component in an RFID system that is responsible for transmitting and receiving radio frequency (RF) signals between the RFID reader and the RFID tags. The antenna is the interface through which the RFID reader communicates with the tags, enabling the transfer of data. Its design, size, and placement significantly impact the range, reliability, and efficiency of the RFID system.

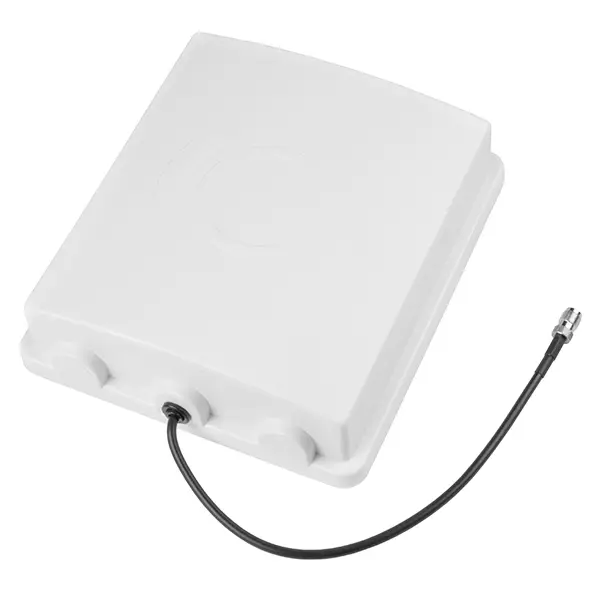

RFID Antennas

Key Points about RFID Antennas:

1. Functionality:The primary function of an RFID antenna is to send out RF signals that power up passive RFID tags (tags without a battery) and establish communication with them. The antenna also receives signals back from the RFID tags containing their unique identification (ID) or other stored data.In an RFID system, the reader uses the antenna to generate electromagnetic waves, which the tags pick up and use to transmit their data. The performance of the antenna determines the effective range and speed at which data can be transmitted.
2. Types of RFID Antennas:Linear Polarized Antennas: These antennas transmit and receive signals in one plane, either horizontally or vertically. They are ideal when the tags are oriented in a specific way and are commonly used in environments where the tags are all positioned uniformly.Circular Polarized Antennas: Circular polarized antennas transmit and receive signals in a rotating pattern, allowing them to communicate with tags that might be oriented in any direction. These antennas are more versatile and are typically used in environments where tag orientation is unpredictable, such as in retail or logistics.Patch Antennas: Patch antennas are compact, flat antennas often used in RFID systems for shorter-range applications. They are usually employed in fixed installations where the tag and antenna alignment are predictable.Dipole Antennas: Dipole antennas are often used in low-frequency RFID systems. They are simple, symmetrical antennas with two metal rods that transmit and receive signals in a pattern that can be more omnidirectional.Array Antennas: These are advanced antennas composed of multiple individual elements. They can offer higher gain and are used in applications requiring longer read ranges or more focused signal coverage, like in warehousing or vehicle tracking.
3. Factors Affecting RFID Antenna Performance:Frequency: RFID antennas are designed to work with specific frequencies. For example, Low-Frequency (LF) systems use antennas that operate at 125 kHz, High-Frequency (HF) antennas operate at 13.56 MHz, and Ultra-High Frequency (UHF) antennas operate in the 860-960 MHz range. The frequency determines the read range and the type of application the antenna is best suited for.Gain: Antenna gain is a measure of how well an antenna can focus its signal in a particular direction. Higher gain typically translates to a longer read range but a more narrow beam of communication. Antennas with low gain tend to have broader, more omnidirectional coverage but shorter ranges.Polarization: The polarization of an antenna refers to the orientation of the electromagnetic wave's electric field. Antennas that match the polarization of the RFID tags can communicate more effectively. Circular polarized antennas are often preferred in environments where tag orientation is unpredictable.Size and Shape: The size and shape of the antenna influence the range and the area of coverage. Larger antennas generally offer a greater range, but they might be bulkier and harder to install in some environments.
4. Applications:Inventory and Asset Management: RFID antennas are used in retail and warehouse environments to read tags on products or assets, enabling efficient tracking and inventory management.Access Control: RFID antennas are used in access control systems to read cards or tags on personnel, vehicles, or objects to manage entry into secure areas.Logistics and Supply Chain: RFID antennas are integral to tracking shipments, pallets, and containers throughout the supply chain, providing real-time visibility and improving efficiency.Transportation and Tolling Systems: RFID antennas are used in toll collection systems to read vehicle tags as they pass through toll booths, allowing for automatic, cashless payments.Healthcare: RFID antennas are also used in hospitals and healthcare settings to track medical equipment, pharmaceuticals, and patient records.
5. Considerations:Environmental Factors: The effectiveness of RFID antennas can be influenced by factors such as interference from metal objects, liquids, or other electronic devices. UHF RFID antennas, in particular, may have reduced performance near metals or liquids, so careful consideration of antenna placement is required in certain environments.Antenna Placement: The placement of the antenna is crucial for optimizing the performance of an RFID system. The antenna should be positioned to ensure maximum coverage of the area where the tags will be located, while also avoiding interference from nearby objects.Directionality: Depending on the application, RFID antennas can be designed to have a wide coverage area (omnidirectional) or a focused beam (directional). Omnidirectional antennas are useful in environments where tags are scattered in various directions, while directional antennas are better suited for long-range or focused applications.
6. Benefits:Longer Read Range: A well-designed RFID antenna can significantly increase the effective read range of an RFID system, allowing it to scan tags from several meters away (depending on the frequency and the power of the system).Improved Data Capture: With the right antenna, RFID systems can capture data more quickly and accurately, which is crucial for high-volume environments like retail or logistics.Adaptability: Circular polarized antennas and other versatile designs allow RFID systems to function effectively in a variety of environments with different tag orientations and placement.

In Summary:

RFID antennas are essential components in an RFID system, responsible for transmitting and receiving RF signals to communicate with RFID tags. The type, frequency, polarization, and design of the antenna all influence the range, efficiency, and performance of the system. By carefully selecting and positioning the right RFID antenna, businesses can optimize their RFID systems for a wide range of applications, from inventory tracking and asset management to access control and logistics.
