Description of RFID Reader Modules

An RFID Reader Module is a device used to read Radio Frequency Identification (RFID) tags. It enables the wireless exchange of data between an RFID tag (which contains a microchip and an antenna) and the reader module itself. These modules are key components in an RFID system, used for a wide range of applications such as inventory management, access control, and asset tracking.

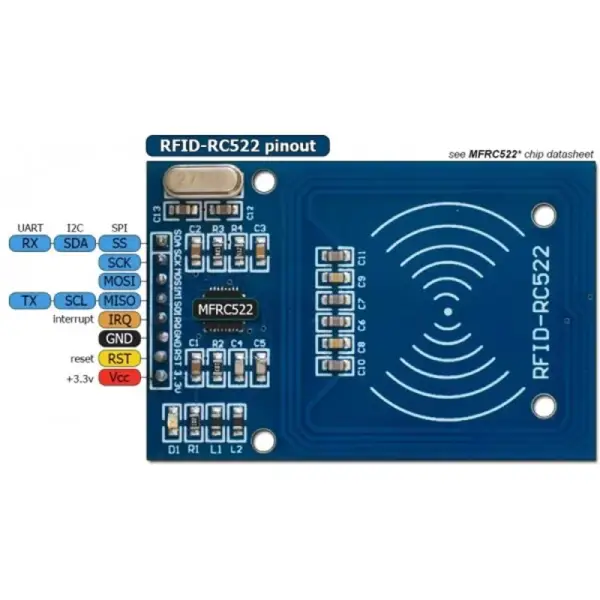

RFID Reader Modules

Key Points about RFID Reader Modules:

1. Functionality:The RFID reader module emits radio frequency (RF) signals to power up passive RFID tags (those without a battery) and to communicate with them. It can also receive signals from active RFID tags (which have their own power source).Once the RFID tag receives the signal, it responds with its stored data, such as a unique identifier (UID) or other information.The reader module then transmits this data to a host system, where it can be processed or stored.
2. Types of RFID Reader Modules:Low-Frequency (LF) Readers: Operate typically at 125 kHz. They are used for short-range applications like animal tracking or security badges.High-Frequency (HF) Readers: Operate at 13.56 MHz and are used for applications like contactless payments, library book tracking, and inventory management.Ultra-High Frequency (UHF) Readers: Operate between 860 MHz and 960 MHz. They provide longer read ranges (up to several meters) and are used in logistics, supply chain, and vehicle tracking.Active RFID Readers: These are used for long-range RFID tags that are powered by a battery and transmit their own signal, allowing the reader to capture data over greater distances.
3. Components of an RFID Reader Module:Antenna: The antenna in the reader module emits and receives RF signals to communicate with RFID tags. The size and design of the antenna determine the range and directionality of the reader.RF Module: The RF module processes the signals received from the antenna. It converts these signals into a format that can be understood by the system (usually digital data).Microcontroller: The microcontroller within the RFID reader module manages communication, processing data, and controlling the operation of the RFID system.Interface: The reader communicates with external systems (like a computer or a server) through various interfaces like UART, SPI, USB, or Ethernet.
4. Applications:Access Control: RFID readers are commonly used in secure entry systems, such as for doors, gates, or turnstiles, where an RFID tag (often embedded in a card or a key fob) grants access.Inventory Management: In warehouses, retail environments, and libraries, RFID readers are used to track goods or assets automatically.Asset Tracking: RFID readers help in monitoring and managing assets, like equipment or tools, to ensure they are properly accounted for and located.Supply Chain Management: In logistics, RFID readers help streamline the process of tracking goods through the supply chain, reducing human error and improving efficiency.
5. Benefits:Contactless Operation: RFID readers can read tags without the need for direct contact or line-of-sight, which makes them more versatile than barcodes or magnetic stripe cards.Speed and Efficiency: RFID systems can quickly scan multiple tags at once, making them ideal for high-speed, high-volume environments.Durability: RFID tags and reader modules can operate in harsh environments where other systems, like barcodes, may fail due to dirt, wear, or exposure to the elements.Long Range: Depending on the type of RFID system (LF, HF, UHF), the reader can scan tags at varying distances, some even several meters away.
6. Considerations:Range: The read range can vary based on the type of RFID system (LF, HF, or UHF) and the environment. UHF systems offer the longest range but may be more sensitive to interference from metals or liquids.Power Supply: Most RFID reader modules require a stable power supply to operate efficiently, especially for long-range systems.Interference: Radio interference can affect the performance of an RFID reader, particularly in crowded environments with many devices emitting RF signals.

In Summary:

RFID Reader Modules are essential components for reading data from RFID tags in various applications like access control, inventory management, and asset tracking. They use radio frequency signals to communicate with RFID tags, providing a quick and efficient way to exchange data without the need for physical contact. With different types of reader modules available (LF, HF, UHF), these devices can be tailored to meet the needs of specific industries, offering reliable performance and flexibility in diverse environments.
