Description of Angle, Linear Position Measuring

These devices and technologies are used to accurately measure angular changes or linear positions. They are widely applied across industrial automation, mechanical engineering, precision instruments, aerospace, automotive industries, and more. Angular measuring devices can be optical, electromagnetic, or based on Micro-Electro-Mechanical Systems (MEMS), while linear position measurement may involve the use of linear encoders, potentiometers, or laser distance sensors.

Angle and Linear Position Measuring are essential techniques used in various industrial, automotive, and automation applications to monitor the position of objects, whether they are moving in a straight line or rotating. Accurate position measurement ensures the precision, efficiency, and safety of systems that rely on the movement of parts or components.

Angle, Linear Position Measuring

1. Angle Position Measuring

Angle position measurement refers to determining the rotational position or angular displacement of a rotating object. This is commonly used to track the rotation of shafts, gears, or any rotating machinery parts in systems like motors, robotics, or automation.

Types of Angle Position Sensors:

• Rotary Encoders: Rotary encoders are widely used for measuring angular position. They can be incremental (measuring changes in angle) or absolute (providing a specific angle value). They are often used in applications requiring precise rotational measurements, like controlling robotic arms or CNC machinery.Incremental Encoders: Measure the change in angle from a reference point, providing a series of pulses that represent movement. The number of pulses corresponds to the angular distance traveled.Absolute Encoders: Provide a unique angle reading at any given point, even after power loss. This ensures the position is always known without the need for recalibration.
• Resolvers: These are electromagnetic devices used for precise angle measurement, often in harsh environments like aerospace or automotive applications. They work by generating a sine and cosine signal that corresponds to the angle of rotation.

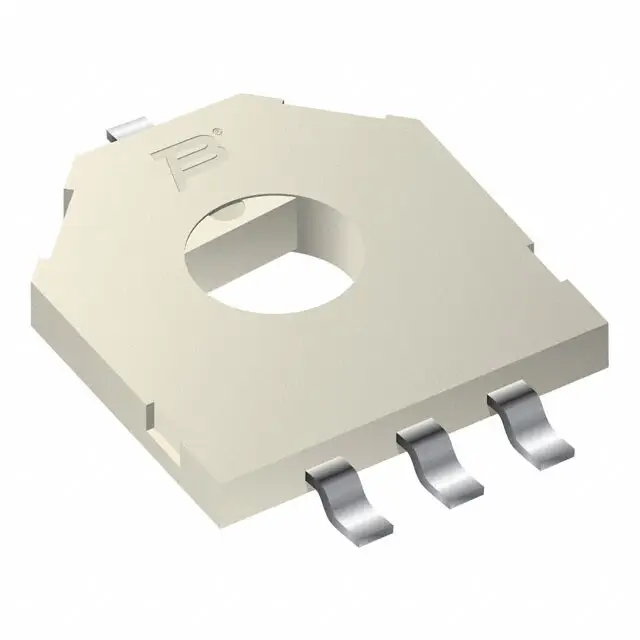

• Potentiometers: A rotational potentiometer, or angle sensor, measures angular displacement by varying the resistance as the shaft rotates. These are simpler and typically used in lower-cost applications.

Applications:

• Robotics: To control the movement of robotic arms or joints.
• Motor Control: To monitor the rotation of motors in machinery.
• Automotive: In steering systems, throttle controls, or wheel alignment tracking.
• Aerospace: In flight control surfaces, such as rudders or ailerons, for precise position feedback.

2. Linear Position Measuring

Linear position measuring involves determining the position of an object along a straight line, typically within a confined range. This type of measurement is crucial for systems that require the monitoring of linear motion, such as CNC machines, conveyor belts, and robotic systems.

Types of Linear Position Sensors:

• Linear Encoders: These sensors work similarly to rotary encoders but track the position of an object along a linear path. They can be incremental or absolute and are used to measure the displacement of an object over a set distance.
• LVDT (Linear Variable Differential Transformer): LVDTs are highly accurate sensors used for measuring linear displacement. They work by detecting changes in inductance as a ferromagnetic core moves within the transformer, providing highly precise position feedback.
• Potentiometers: Just as they can measure angular position, potentiometers can also measure linear displacement. The position of the wiper across a resistive element correlates to the object's position.
• Laser Displacement Sensors: These sensors use laser light to detect the distance to an object, providing highly accurate measurements. They are used in applications where high precision is required, such as in semiconductor manufacturing or quality control.
• Magnetic Linear Sensors: These sensors use magnetic fields to measure linear displacement. They are known for being durable and reliable in harsh industrial environments.

Applications:

• CNC Machines: To measure the position of the cutting tool or the workpiece.
• Conveyor Systems: To monitor the movement of items along a production line.
• Robotics: For tracking the position of linear actuators or robotic limbs.
• Automation Systems: Used to measure the movement of parts in automated assembly lines, ensuring precision in assembly or packaging processes.

3. Comparison of Angle and Linear Position Measuring:

4. Key Benefits:

• Precision and Accuracy: Both angle and linear position sensors offer high accuracy, which is crucial for applications that require precise control, such as robotics and CNC machinery.
• Real-time Feedback: These sensors provide real-time feedback to control systems, allowing for immediate adjustments to movement, improving efficiency and minimizing errors.
• Versatility: These sensors are used in a wide range of applications, from simple mechanical systems to complex automated factories.
• Durability: Many of these position sensors are designed to perform reliably in challenging environments, including high-vibration or extreme temperature settings.

Conclusion:

Angle and linear position measuring are foundational technologies for modern automation, robotics, and manufacturing. By providing precise feedback on the movement and position of objects, these sensors enable accurate control, improve system efficiency, and ensure safety. Whether for rotational or linear displacement, selecting the appropriate sensor for the application is critical for achieving the desired performance and reliability.
