Description of Current Sensor

Current sensors are devices that measures the flow of current in a circuit and convert it into a usable electrical or digital signal. Current sensors are widely used in industrial automation, power systems, automotive electronics, home appliances, and battery management systems to monitor and control current in a conductor, which ensures system safety and efficiency.

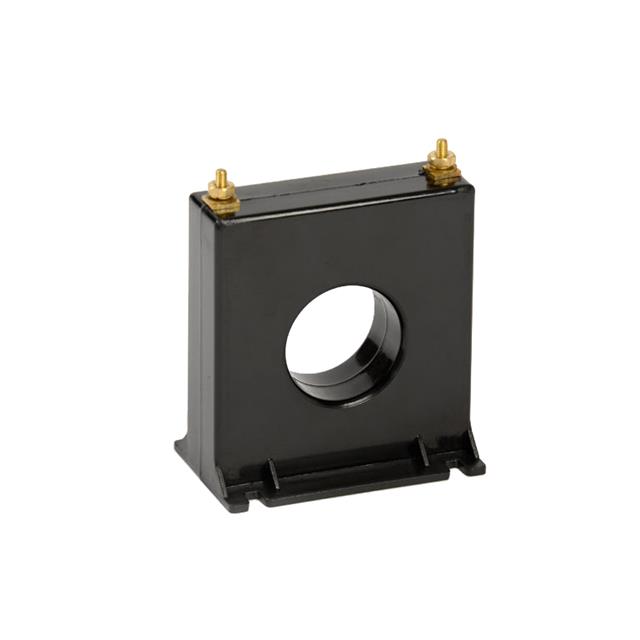

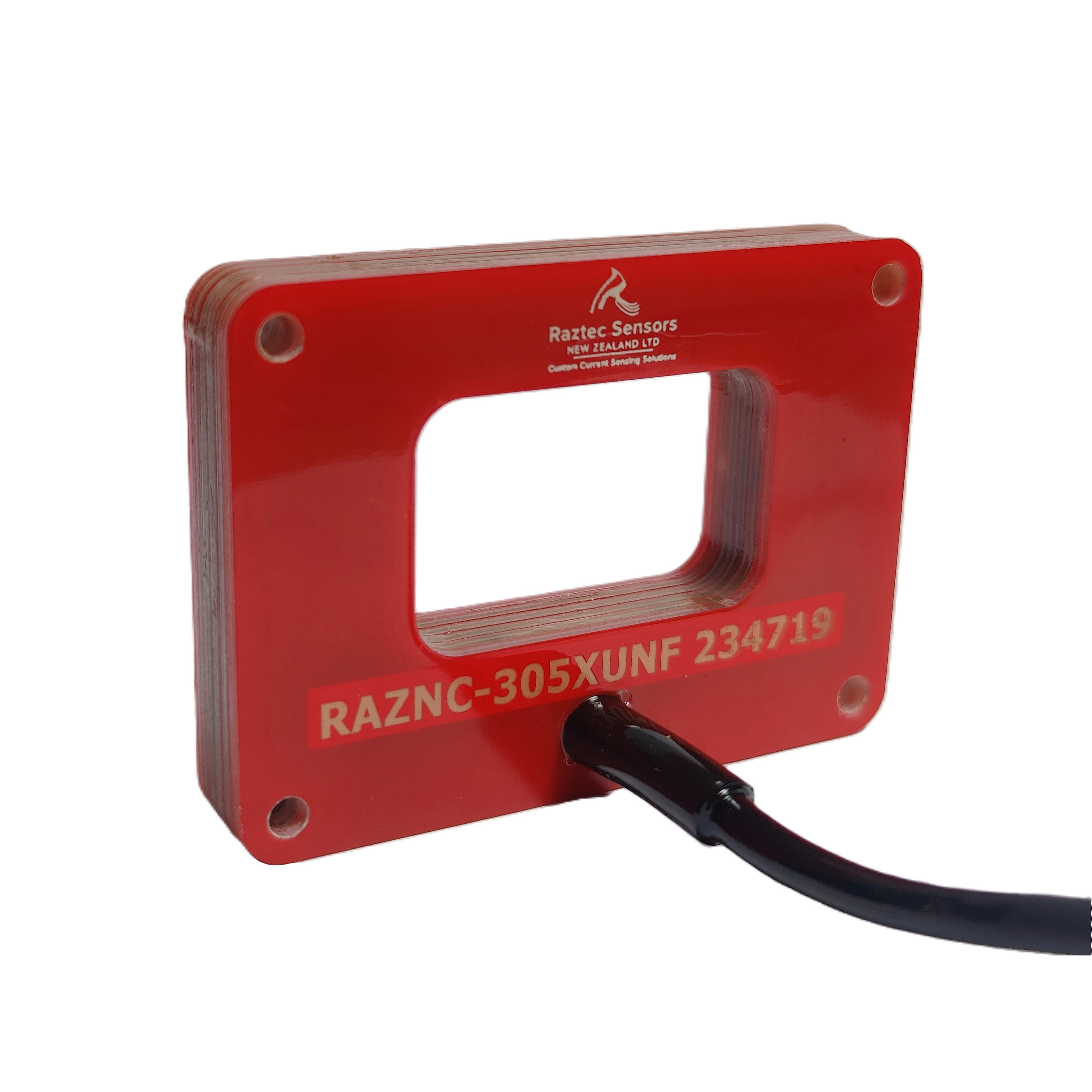

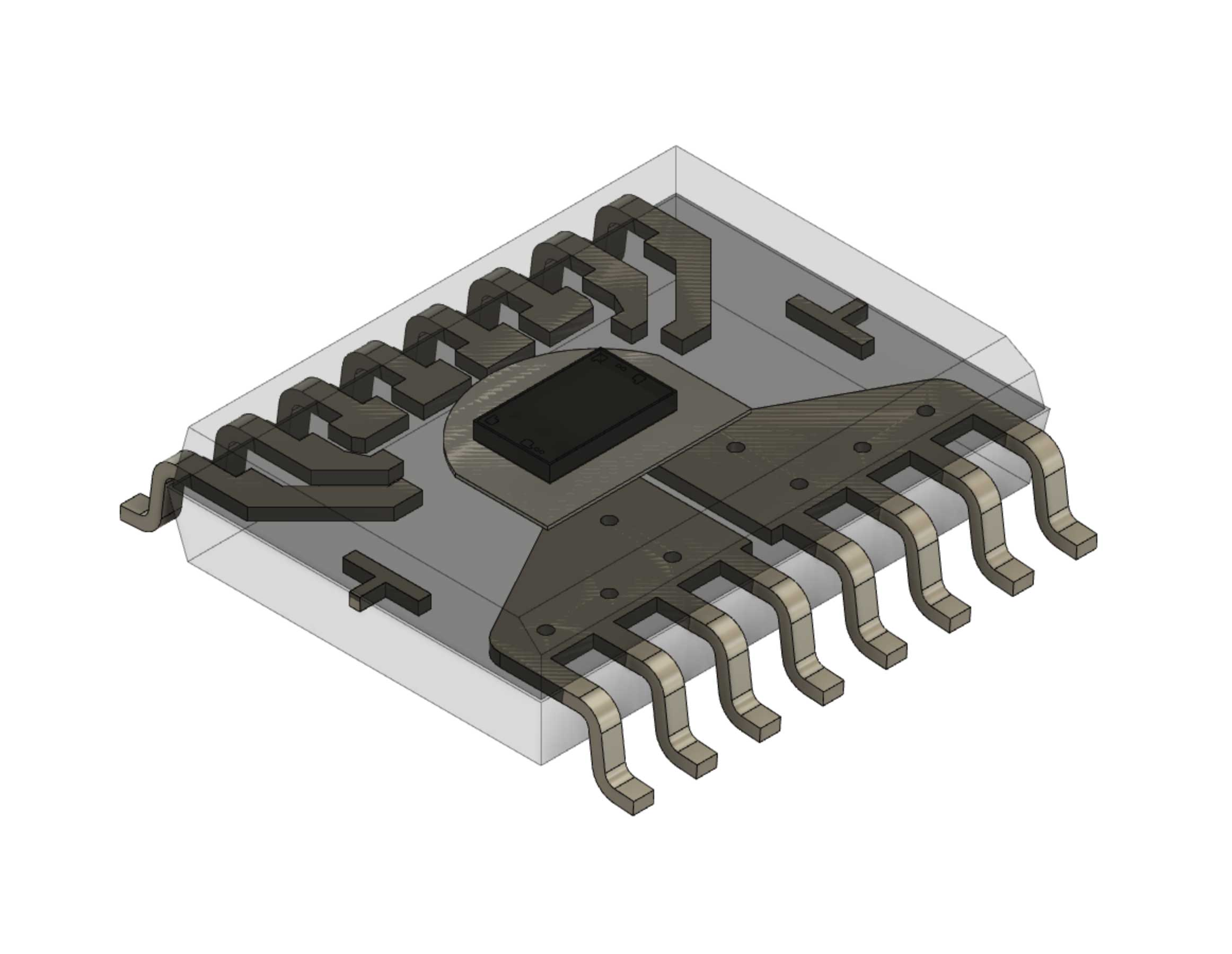

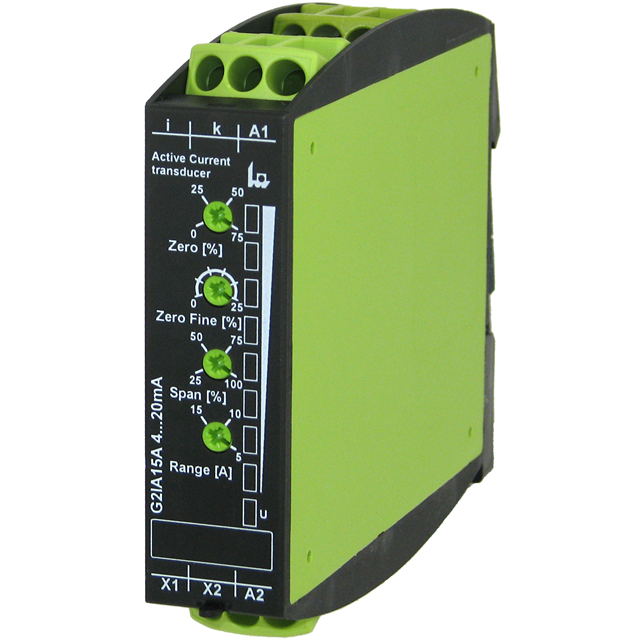

Current sensor

Key Features of Current Sensor

Economical pricing:Offers cost-effective solutions without compromising on performance.

Coreless design: Provides enhanced flexibility and reliability by eliminating the need for a magnetic core.

Compact size: Facilitates easy installation and integration into various applications due to its small size.

Highly accurate: Ensures precise and reliable measurements of current, critical for many industrial and automotive applications.

Wide bandgap capability: Allows for operation over a broader range of temperatures and voltages, enhancing durability and performance in harsh environments.

Frequently Asked Questions

How to choose a current sensor?

The choice of a current sensor involves a balanced consideration of both technical specifications and economic factors, including not only the sensor itself but also the entire associated system.

The following aspects should be taken into account:

1. Electrical Specifications

Power Supply: Ensuring compatibility with the available power infrastructure.

Response Time: Meeting the required speed for accurate current sensing.

2. Mechanical requirements

Aperture Size: Adequate for the conductors or cables being monitored.

Materials: Compatibility with the surrounding environment and system components.

3. Thermal conditions

Current Profile Versus Time: Understanding the load cycles and their impact on sensor performance.

Cooling: Implementing effective cooling mechanisms to maintain optimal sensor operation.

4. Environmental conditions

Vibrations: Resistance to mechanical stress and movement in dynamic environments.

Temperature: Operation within the sensor's specified temperature range.

What are current sensors used for?

A current sensor functions to detect and quantify the electric current flowing through a conductor. It converts this current into a measurable output, such as a voltage, another current, or a digital signal, which can be used across various applications for purposes of monitoring, control, or safety protection.

What are the disadvantages of current sensors?

Due to the presence of the core, there are challenges related to space allocation, particularly concerning its height. Additionally, the magnetic core exhibits hysteresis in theory, which can result in variations in the zero-current output (offset voltage) and ultimately introduce measurement errors when subjected to strong magnetic fields.

What are the applications of current sensor?

Current sensors have a wide range of applications. Some are employed in power metering, diagnosing control systems, measuring current supply, and controlling intricate loads such as electric motors. Others serve purposes like charge integration and monitoring the condition of rechargeable batteries.

What is the difference between a power sensor and a current sensor?

A Power Sensor measures either current or voltage and supplies information about the monitored parameter levels to a control system. Current sensors have the capability to measure both alternating current and direct current, enabling them to monitor power consumption and facilitate diagnostics for electrical equipment.
