Introduction of RTD (Resistance Temperature Detector)

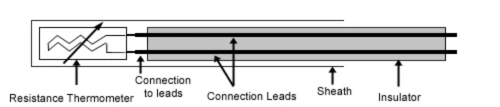

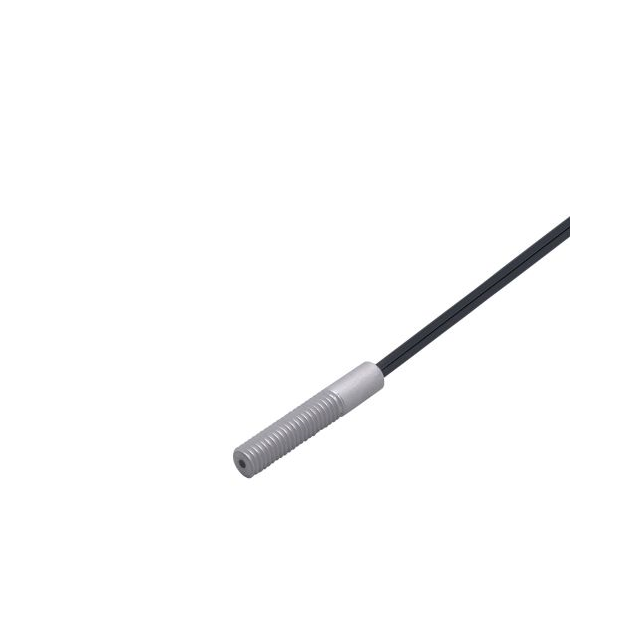

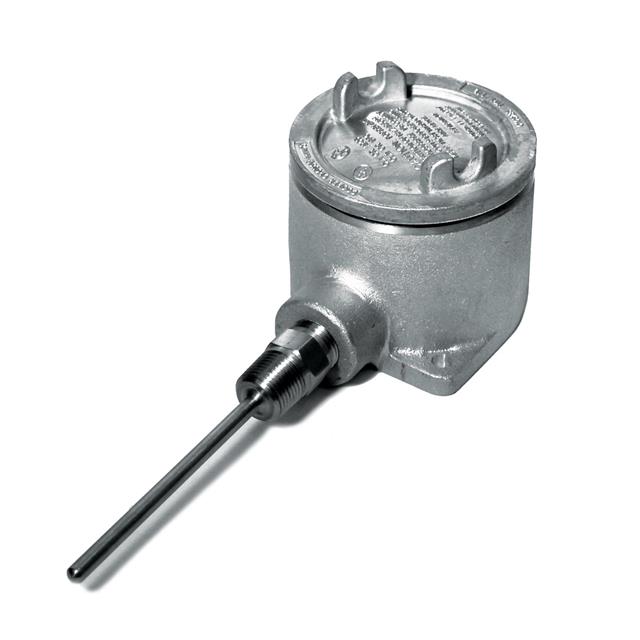

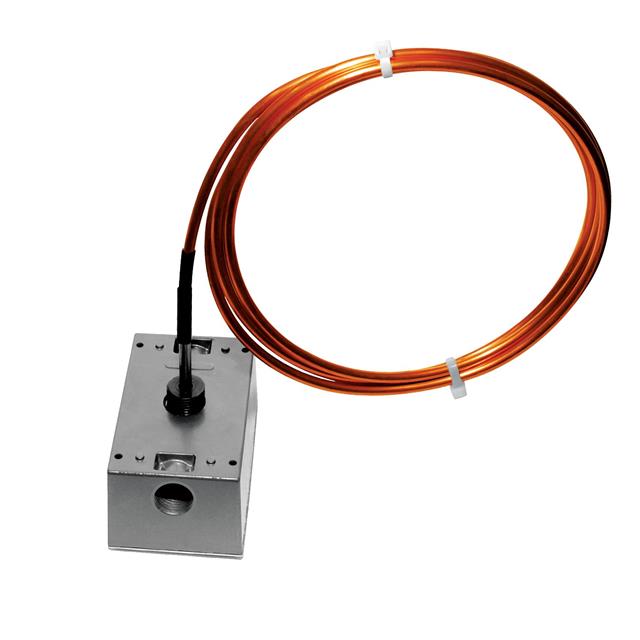

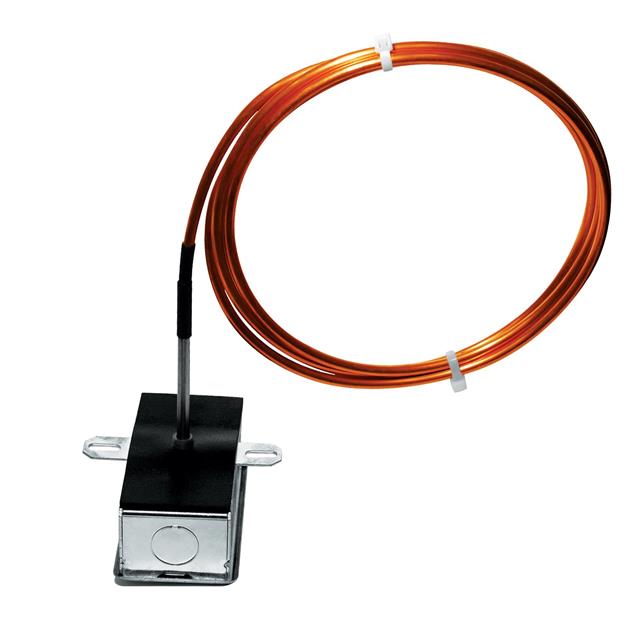

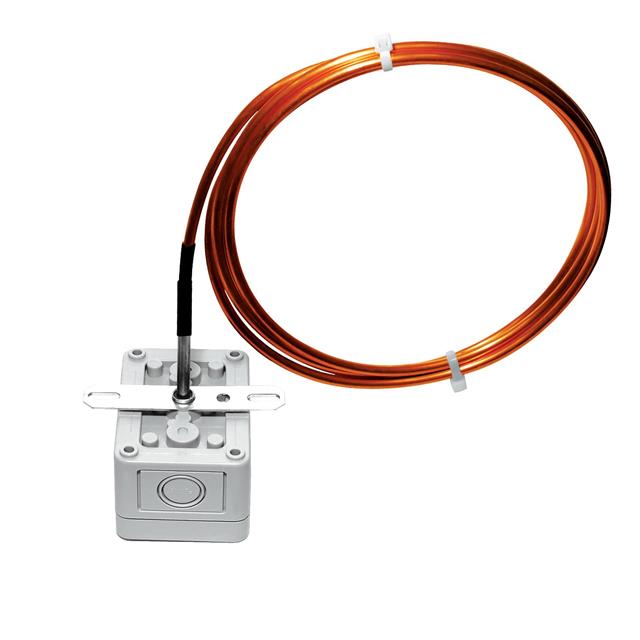

An RTD (Resistance Temperature Detector) is a sensor that measures temperature by detecting variations in electrical resistance. Made primarily from pure platinum or other metals, RTDs are valued for their high accuracy and reliability, making them essential in industrial process control, laboratory testing, and environmental monitoring.

Temperature is one of the most frequently monitored parameters in industry. For example, food and beverage manufacturers rely on precise temperature control to meet FDA regulations and prevent product spoilage. In the chemical industry, accurate temperature monitoring is critical to manage reaction rates, avoid unwanted side reactions, prevent runaway reactions, and optimize energy efficiency.

How to Calibrate a Resistance Temperature Detector (RTD)

To calibrate an RTD, begin by immersing it in an ice water bath. Once the voltage stabilizes, record the temperature using a calibrated thermometer and note the corresponding voltage from the Wheatstone Bridge circuit. Repeat this process with various temperatures, such as room temperature water, heated water, and boiling water. Gathering more data points will enhance the calibration accuracy. You can then plot these values and determine a best-fit line to illustrate the relationship between voltage and temperature.

While the calibration process may take some time, it offers the significant benefit of automatically compensating for temperature variations in the nearby wiring, as their resistance changes in tandem with that of the RTD.
