What are Isolation Transformers?

An isolation transformer is a stationary device designed to physically and electrically separate its primary and secondary windings, ensuring isolation between connected circuits. It transfers electrical energy via magnetic induction, using a magnetic field to induce an electromotive force (EMF) in the secondary winding, all while maintaining the original frequency.

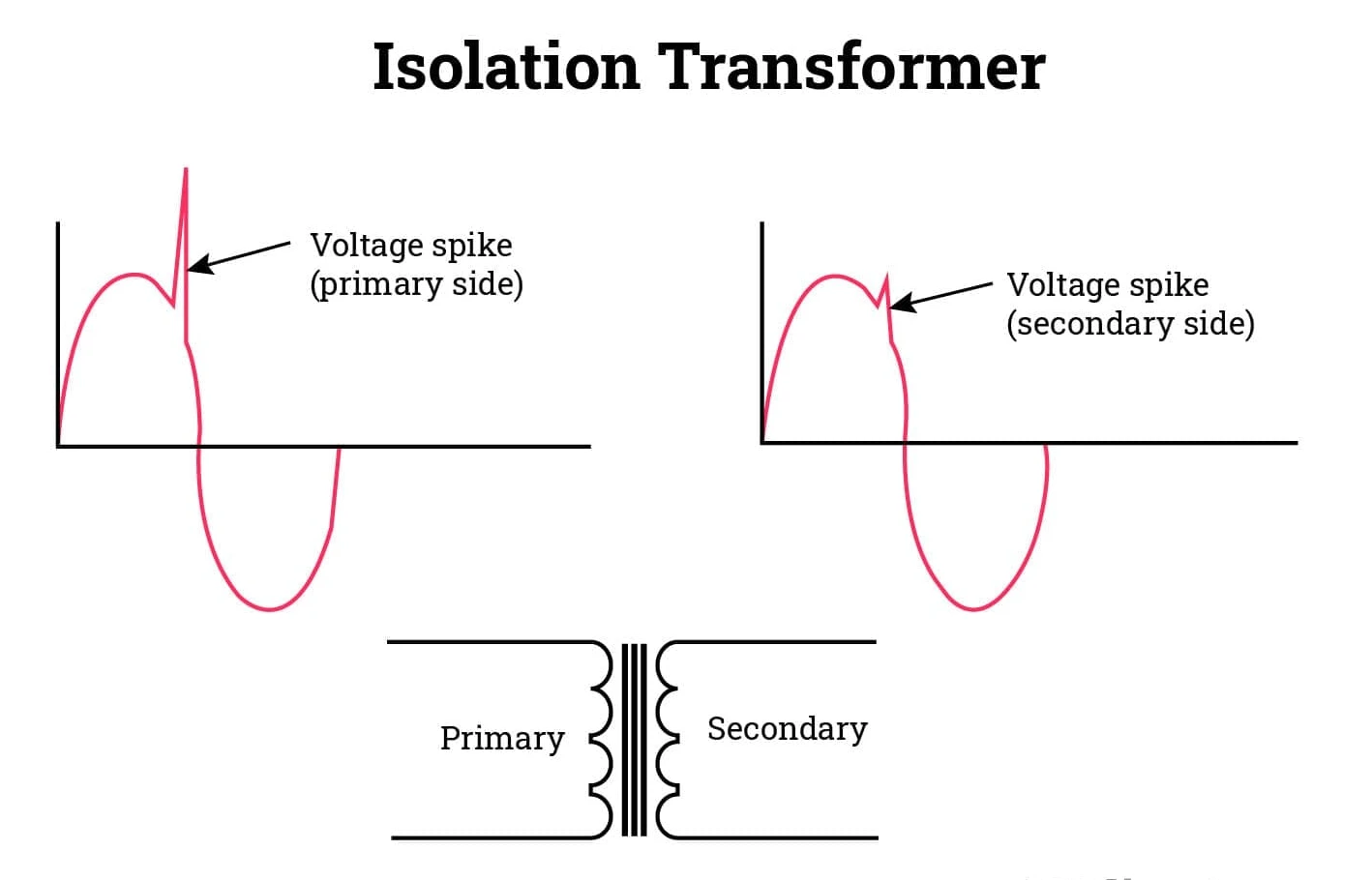

In power transmission and distribution systems, isolation transformers are used to adjust voltage levels by stepping them up or down, aligning the voltage and current capacities between the two windings. A key function of these transformers is to protect against voltage spikes in supply lines, which could otherwise cause disruptions or damage equipment.

By being positioned between power supply lines, an isolation transformer helps reduce voltage spikes before they affect the load. It also prevents grounding problems on the secondary side, reducing ground loop interference and minimizing noise in connected equipment.

What Is The Difference Between Step-Up and Step-Down Transformers?

Step-Up Transformer

A step-up transformer's primary function is to increase a lower primary voltage to a higher secondary voltage. This is commonly needed at construction sites where large industrial equipment requires a higher voltage, like 480 volts, to operate. Additionally, step-up transformers are used in industrial warehouses and buildings to power LED lighting fixtures and high bays, helping reduce energy costs in large-scale lighting systems.

Step-Down Transformer

In contrast, a step-down transformer performs the opposite function of a step-up transformer. Its main role is to reduce a higher primary voltage to a lower secondary voltage. For example, it often converts 277/480V down to 120/208V, making it suitable for powering tools and temporary lighting at job sites or entertainment venues.

Reversing the Transformer Voltage

While step-up and step-down transformers serve different voltage conversion purposes, they can be configured to work in reverse. By connecting the secondary voltage side with the appropriate cable, a step-down transformer can function as a step-up transformer, and vice versa. However, it’s crucial to consult a licensed electrician to ensure proper wire sizing and voltage calculations, avoiding any damage to the transformer or equipment. This reversibility makes transformers versatile for portable and temporary power solutions, ensuring the right voltage is supplied as needed.
