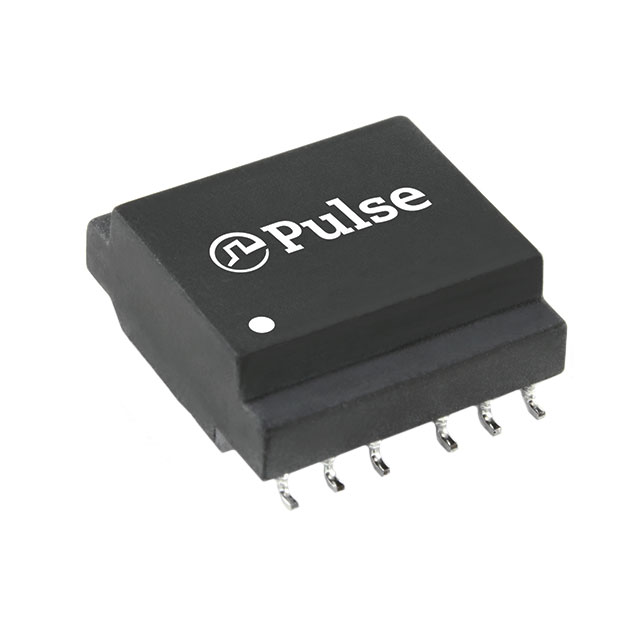

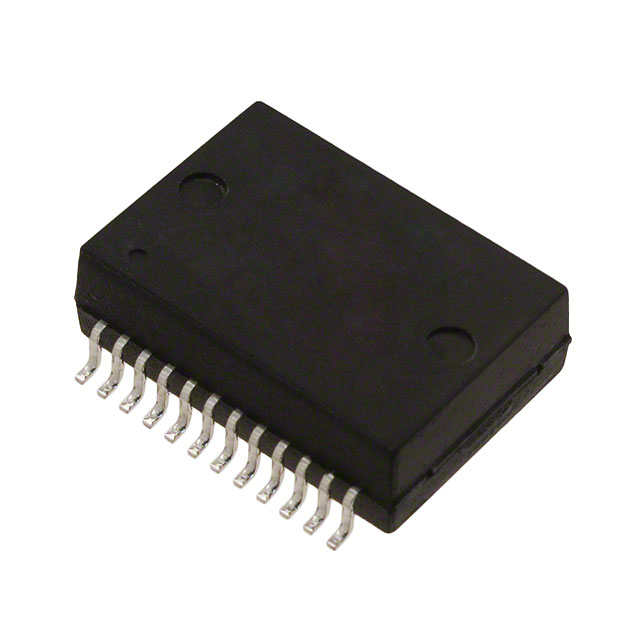

What Is A Pulse Transformer?

A pulse transformer is an electrical device designed to isolate distant circuits or modify characteristics like voltage or current ratings in power systems. It’s an excellent choice for various industrial applications due to its compact size, reliability, and ability to manage high-power pulses.

Pulse transformers are optimized to transfer significant amounts of energy quickly and efficiently. They are known for their broad pulse width and fast rise time. The key functions include:

• Converting voltage between different levels
• Isolating input and output circuits
• Assisting with distributed power factor correction (PFC)

Construction and Working

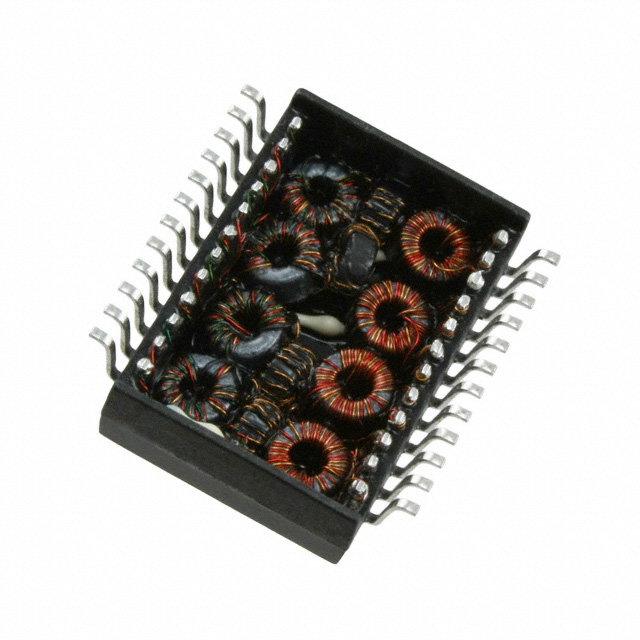

A pulse transformer is made up of primary and secondary windings. The primary winding is connected to the input, while the secondary winding is linked to the output. Its core is generally toroidal, often made from ferrite or other high-permeability materials, to reduce core losses and enhance efficiency.

The pulse transformer operates on the principle of electromagnetic induction. When a pulse is sent through the primary winding, it generates an electromagnetic field in the core, which in turn induces a voltage in the secondary winding. The induced voltage depends on the number of turns in both the primary and secondary windings. The voltage-to-current ratio is determined by the turns ratio, which can be configured as 1:1, 1:5, or other values based on the application’s requirements.

The above schematic illustrates how a pulse transformer functions within an SCR gate drive circuit. A constant voltage source powers the pulse generator, which can be a microcontroller or a 555 timer that produces pulses of the appropriate length. To ensure both signal transmission and electrical isolation between the low-power and high-power circuits, the pulse transformer is employed. A diode is included in the circuit to allow current flow in only one direction, preventing any reverse current from reaching the SCR gate terminal. Additionally, a resistor is used to regulate the SCR's holding current.
