What are Linear Actuators?

Unlike rotary actuators, linear actuators transform energy into straight-line movement instead of rotation. They use various energy forms, such as electrical, hydraulic, and pneumatic power, to create controlled linear motion. Electric actuators rely on motors and gears to produce movement, while hydraulic and pneumatic actuators use pressurized fluids or air. These devices are crucial in automation systems and machinery as they provide precise control over position, speed, and force.

Linear actuators find applications across numerous sectors, ranging from manufacturing to healthcare. In industrial settings, they are essential for tasks like material handling, assembly, and packaging. In healthcare, they help adjust the position of hospital beds and surgical tables with high accuracy. These actuators promote automation, operational efficiency, and adaptability in various fields due to their reliability.

Linear Actuators

Types of Linear Actuators

Linear actuators come in different types based on the mechanism or energy used. Here are some of the most common ones:

• Electric Linear Actuators: These actuators convert electrical energy into mechanical motion to create linear movement. Typically, they use motors, gears, lead screws, and belts to transform rotary motion into straight-line motion. Electric actuators are well-suited for tasks requiring high precision, such as in robotics, automated manufacturing, and adjustable furniture.

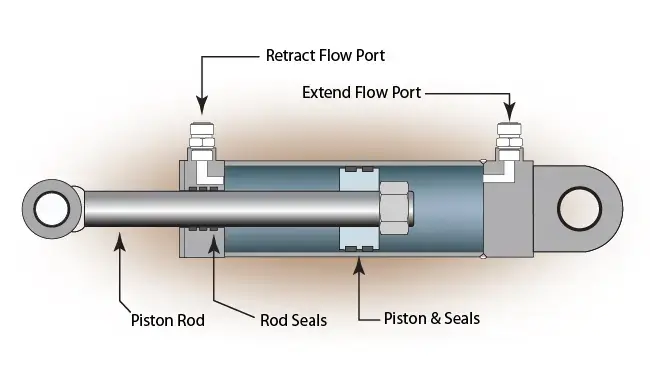

• Hydraulic Linear Actuators: These actuators generate linear motion by using pressurized hydraulic fluid. The hydraulic pressure pushes a piston, causing it to extend or retract. Hydraulic actuators are known for producing high force and handling heavy loads, making them ideal for machinery in industries like construction and agriculture.
• Pneumatic Linear Actuators: These actuators use compressed air to create linear movement. The change in air pressure inside the cylinders moves the piston. Though they have a simple design, pneumatic actuators respond quickly, making them perfect for applications like automated tools, HVAC systems, and industrial automation where speed and low cost are critical.
• Mechanical Linear Actuators: Mechanical actuators achieve linear motion using mechanical components like cams, gears, and pulleys. These actuators rely on physical systems rather than external energy sources, like electricity or fluids. They are often used in applications like manual valve control, positioning systems, and automotive components.
• Piezoelectric Linear Actuators: These actuators generate motion using the piezoelectric effect, which allows them to move with high precision at very small scales. Their frictionless operation makes them highly sought after in applications like nanopositioning, optical devices, and fine micromanipulation tasks.

Applications of Linear Actuators

Industrial Automation: In manufacturing, linear actuators are crucial for material handling, assembly, and packaging. They efficiently move products along production lines and are used in automated systems for repetitive tasks that require precise positioning.

• Robotics: Linear actuators are used to move robot arms and other components accurately. In industrial settings, they assist in tasks like welding, painting, and material handling by extending and retracting robotic limbs. For robots, precision and repeatability are essential features.
• Medical Equipment: Devices like hospital beds and surgical tables rely on linear actuators to adjust their position with great accuracy. These actuators contribute to patient comfort and assist healthcare professionals by enabling precise positioning during medical procedures.
• Agricultural Machinery: In agriculture, linear actuators are used in systems like planters, harvesters, and irrigation controls. They help automate seed planting, crop harvesting, and valve management in irrigation systems, increasing both efficiency and productivity.
• Aerospace and Defense: In aerospace, linear actuators deploy landing gear, adjust flaps, and position satellite antennas and solar arrays. These actuators are crucial for aircraft, spacecraft, and defense systems, ensuring reliable operation in extreme environments.
• Adjustable Furniture and Ergonomics: Many adjustable furniture systems, such as ergonomic chairs and reclining beds, use linear actuators for height adjustments and other features. They help improve comfort and productivity in both home and office environments.
• Automotive Systems: In vehicles, linear actuators are used for power windows, seat adjustments, trunk lifts, and convertible roof mechanisms. They ensure smooth and reliable operation, enhancing vehicle comfort and functionality.
• Environmental Control Systems: Linear actuators regulate temperature and airflow in HVAC systems and building automation, controlling dampers, valves, and louvers to maintain comfort and improve energy efficiency.
• Entertainment and Amusement: Linear actuators are used in ride simulations, flight simulators, and virtual reality systems to replicate motion, creating immersive experiences and enhancing entertainment value.
• Telecommunications and Broadcasting: Antennas and satellite dishes depend on linear actuators to adjust their positioning and alignment for optimal signal reception and transmission, ensuring reliable communication in broadcasting and telecommunications systems.

Benefits of Linear Actuators

Accuracy and Precision: Linear actuators offer precise control over motion, enabling accurate positioning and repeatability. This makes them essential in applications where exact alignment and movement are crucial, such as in manufacturing, robotics, and medical equipment, where consistency and quality are key.

• Flexibility: Available in various types—electric, hydraulic, pneumatic, mechanical, and piezoelectric—linear actuators are versatile and can be used in both heavy-duty industrial applications and sensitive, precise operations in labs or healthcare environments.
• Controlled Speed and Force: The speed and force of an actuator can be tailored to meet specific requirements. For example, hydraulic actuators can generate significant force for lifting heavy loads, while electric actuators allow for precise control over motor speed.
• Space-Efficient Design: Linear actuators have a compact form factor that allows them to fit into tight spaces. This makes them ideal for use in environments with limited room or in applications where multiple actuators are required. Their compact size adds to their adaptability in various settings.
• Energy Efficiency: Electric linear actuators tend to be more energy-efficient than their hydraulic or pneumatic counterparts, thanks to features like variable-speed drives and regenerative braking systems. This not only lowers energy consumption but also helps reduce operational costs, contributing to a more eco-friendly operation.
• Dependability and Longevity: Linear actuators are designed to handle high loads, frequent use, and challenging environments, making them suitable for demanding applications. Hydraulic actuators, in particular, are known for their durability and ability to operate reliably in tough industrial conditions.
• Safety: The use of linear actuators can enhance safety by automating tasks that would otherwise require manual labor, reducing the risk of accidents and injuries. Key safety features, such as overload protection and fail-safes, are crucial in critical applications.
• Low Maintenance and Long Life: The maintenance needs and lifespan of linear actuators vary depending on their type and design. For instance, electric actuators generally require less maintenance than hydraulic systems because they have fewer moving parts.

In Conclusion

Linear actuators—whether electric, hydraulic, pneumatic, or piezoelectric—are essential components in fields like automation, robotics, medical devices, and aerospace. Their precision, adaptability, energy efficiency, and reliability make them highly valued in both industrial and healthcare settings. These actuators not only improve productivity and safety but also help reduce operational costs with their compact designs and integration into automation systems. As technology continues to evolve, linear actuators remain a vital part of modern industries, offering efficient solutions to meet ever-changing needs.

Frequently Ask Questions

What is a linear actuator?

A linear actuator is a mechanism that generates linear motion (i.e., movement along a straight line), unlike a conventional electric motor that produces rotational motion.

What are the four primary types of linear actuators?

Linear actuators typically fall into four categories: mechanical/electromechanical, hydraulic, pneumatic, and piezoelectric.

Where are linear actuators used in real-world applications?

Electric linear actuators are highly versatile and ideal for a wide range of automotive applications. They are frequently found in the automotive industry, performing tasks such as opening car doors, trunks, sunroofs, and other components.

Do linear actuators operate on AC or DC power?

Electric linear actuators are powered by either alternating current (AC) or direct current (DC) motors. This article will focus on the key differences between these motor types to help you select the right linear actuator motor.

Do linear actuators handle both pushing and pulling actions?

Linear actuators convert the rotary motion from motors into linear push-and-pull movements. These are perfect for applications that involve tilting, lifting, pulling, or pushing with force. Electric linear actuators are preferred for their smooth, clean, and secure operation with precise control.

What does the future look like for linear actuators?

In the future, electric linear actuators will be fully integrated into Internet of Things (IoT) ecosystems, allowing for remote operation, monitoring, and optimization. These actuators will also become more intelligent and adaptable, leading to enhanced performance.

Why are linear actuators important?

Electric linear actuators are critical in robotics, where accuracy is key. They provide precise control over movements, including acceleration, deceleration, and applied force. Furthermore, they can perform these actions along multiple axes at the same time.

What are the three most common actuator types?

The three most common types of actuators are pneumatic (powered by compressed air), hydraulic (driven by fluid pressure), and electric.

Can you give an example of a linear actuator?

Linear actuators have numerous applications, ranging from wheelchair ramps and toys to advanced technologies in spacecraft. They operate simply by utilizing a screw mechanism, such as a lead screw, ball screw, or roller screw, depending on the required performance.
