Overview of Film Capacitors

A film capacitor is a type of capacitor that uses a thin plastic film as the dielectric material. These capacitors are widely used in various electronic circuits due to their stability, reliability, and cost-effectiveness. Film capacitors are available in a variety of types, and they are often used for applications that require low to moderate capacitance values and relatively high voltages. The construction of a film capacitor consists of two conductive layers (often metal) separated by a dielectric film. This construction offers several advantages, including low leakage current and excellent insulation properties.

Panasonic Surface Mount Film Capacitors

Panasonic Surface Mount Film Capacitors are designed to offer stable capacitance and temperature characteristics. They have tight tolerances, low ESR, low dissipation factors, and are free from shock noise, piezoelectric effects, and audible noise. These characteristics make them ideal for applications like DC blocking and filtering, PLL circuits, audio equipment, DC/DC converters, and backlighting.

In addition to the surface-mount options, Panasonic also offers a wide range of leaded film capacitors. These include Metallized Polyester, Metallized Polypropylene, PPS Film, AC Capacitors, and X Caps. Leaded Film Capacitors are commonly used as X Caps in AC/DC circuits and are suitable for various general electronic applications.

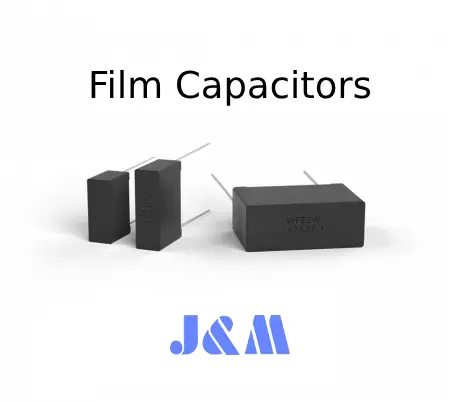

Film Capacitors

Features of Film Capacitors

Film capacitors are popular for their many advantageous features:

High Insulation Resistance

Due to the properties of the dielectric material (plastic film), film capacitors typically have high insulation resistance, which makes them less prone to leakage current. This feature is essential for ensuring long-term performance and reliability.

Stable Performance

Film capacitors are known for their stability over time. Unlike electrolytic capacitors, which can degrade due to the chemical nature of their electrolyte, film capacitors maintain consistent performance throughout their lifespan, making them suitable for critical applications where reliability is essential.

Low Losses

Film capacitors exhibit low losses, meaning they have minimal power dissipation, which results in improved energy efficiency, particularly in high-frequency circuits.

High Voltage Capability

Depending on the type and size of the film capacitor, they can withstand higher voltages compared to other capacitors, such as ceramic or electrolytic types. This makes them ideal for use in power electronic applications.

Non-polarized

Unlike electrolytic capacitors, film capacitors are generally non-polarized, meaning they can be connected in either direction in a circuit. This adds flexibility in design and application.

Temperature and Voltage Stability

Film capacitors are less affected by temperature and voltage fluctuations, contributing to their reliability in demanding environments.

Types of Film Capacitors

Film capacitors are categorized based on the material used for the dielectric. Some common types include:

Polyester (PET) Film Capacitors

These are the most commonly used type of film capacitor. They are known for their affordability and reasonable performance, particularly in low-voltage applications. PET capacitors are often used in consumer electronics, audio equipment, and other general-purpose circuits.

Polypropylene (PP) Film Capacitors

These capacitors offer better performance than polyester capacitors, with lower losses and higher voltage capabilities. Polypropylene capacitors are widely used in power supplies, audio circuits, and other applications where high performance and stability are required.

Polystyrene (PS) Film Capacitors

Known for their excellent accuracy and stability, polystyrene film capacitors are often used in high-precision applications such as RF (radio frequency) circuits, oscillators, and signal processing circuits. However, they are less common in modern designs due to their relatively larger size and sensitivity to temperature.

Polycarbonate (PC) Film Capacitors

These capacitors offer good electrical performance and stability. They are often used in high-temperature environments and industrial applications, although they have been largely replaced by polypropylene capacitors in many applications.

PVC (Polyvinyl Chloride) Film Capacitors

PVC film capacitors are generally used in applications requiring low capacitance values and good environmental resistance. They are suitable for use in power supplies, industrial machines, and automotive applications.

Paper-Film Capacitors

While less commonly used today, paper-film capacitors were historically used in older electronic devices. They offer decent capacitance but have lower stability and durability compared to other types of film capacitors.

Applications of Film Capacitors

Due to their excellent performance characteristics, film capacitors are used in a wide variety of applications. Below are some common uses:

Power Supplies

Film capacitors are often used in power supply circuits, including both AC and DC filtering, voltage smoothing, and energy storage. Their ability to handle high voltages and provide low ESR (Equivalent Series Resistance) makes them ideal for use in these applications.

Audio Equipment

In audio applications, film capacitors are preferred for coupling and decoupling signals. They help in maintaining signal integrity without introducing significant distortion. Polypropylene film capacitors, in particular, are popular for high-fidelity audio circuits due to their low loss and stable performance.

Motor Starters

Film capacitors are widely used in motor starter circuits for applications such as HVAC systems, pumps, and other industrial machines. Their ability to withstand high voltage and operate at high temperatures makes them suitable for these demanding environments.

Signal Processing

In communication equipment, RF circuits, and other signal processing systems, film capacitors are used for filtering, decoupling, and signal coupling applications. Their accuracy and stability are particularly beneficial in high-frequency applications.

Lighting Circuits

Film capacitors are often found in fluorescent lighting ballasts and in circuits for controlling lighting systems. They are used for filtering noise and providing energy-efficient operation.

Switching Power Supplies

In DC-DC converters and AC-DC power supplies, film capacitors provide energy storage, smoothing, and filtering functions. They help to ensure the stability of the power supply and improve the overall performance and efficiency of the system.

Automotive and Industrial Electronics

In automotive electronics and industrial control systems, film capacitors are used in applications such as power conditioning, noise filtering, and signal smoothing. Their durability and resistance to temperature fluctuations make them well-suited for such demanding environments.

High-Frequency Applications

Polypropylene and polystyrene film capacitors are commonly used in high-frequency applications, such as oscillators, filters, and tuning circuits in communication devices, due to their minimal losses and high precision.

Film Capacitors Use in Panasonic

AC Motor Use

Panasonic offers a product lineup suited for various applications, from low-voltage to high-voltage ranges, in both dry-type and oil-filled types.

Automotive, Industrial, and Infrastructure Use

These film capacitors are used in high-voltage and high-current applications. They are commonly employed as smoothers, filters, and snubbers in HEV/EV and industrial inverters.

Electronic Equipment Use

Panasonic Film Capacitors for electronic equipment offer low ESR, no shock or audible noise, and no piezoelectric effects. They provide stable capacitance and temperature characteristics with tight tolerances and low dissipation factors. Available in Surface-Mount (SMT) and radial leaded types, these include Metallized Polypropylene Class X2 Capacitors. These capacitors are reliable even in high-temperature environments and ensure high performance without generating shock noise, piezoelectric effects, or audible noise.

Film Capacitors for MLCC Replacement

Panasonic also provides many alternatives to MLCCs in their Film Capacitor product line. Some of the suggested series include ECW-U(C), ECW-U(X), ECH-U(X), ECH-U(C), ECW-U(V16), and ECP-U(A). These alternatives offer similar or improved performance characteristics compared to traditional MLCCs.

Conclusion

Film capacitors are essential components in modern electronics, offering a blend of stability, reliability, and versatility across a wide range of applications. Whether in power supplies, audio equipment, motor control, or high-frequency circuits, film capacitors continue to play a vital role in ensuring efficient and reliable performance in a variety of electronic systems. Understanding their features, types, and applications helps in selecting the right capacitor for the right job, ultimately improving the performance and longevity of electronic devices.

Frequently Ask Questions

What is a film capacitor used for?

PP film capacitors are used in high-frequency, high-power applications, like induction heating. They're also used in pulsed power energy discharge applications and as AC capacitors for electrical distribution. These capacitors can handle AC voltages up to 400 kV.

Are film capacitors good for audio?

A lot of people recommend using film capacitors for audio because they’re more stable when it comes to applied DC voltage. This makes them more accurate for things like filtering. After that, COG/NP0 capacitors are often a good choice because they maintain stable capacitance with temperature changes. But what about COG/NP0 capacitors with applied DC voltage?

What are the disadvantages of film capacitors?

One downside of film capacitors is that they're big and expensive. So, they're typically used in situations where ceramic capacitors can’t do the job, or in high-performance, high-accuracy applications.

What is the lifespan of a film capacitor?

For example, the MKP1848 film capacitor is rated for 100,000 hours at 70°C. On the other hand, a Rubycon BXC series wet electrolytic capacitor lasts about 12,000 hours at 105°C.
