Relays are widely used in various applications, including automobiles, home automation, DIY projects, industrial systems, testing and measurement equipment, and much more. However, many people are unfamiliar with the technical aspects of relays.

Relays are vital components in both electrical and electronic systems today. They play a key role in everything from household devices to industrial automation control. Whether you're an electronics engineer, a hobbyist, or simply interested in relays, understanding their working principles, different types, applications, and how to choose the right relay is essential for creating successful projects.

What is a Relay?

A relay is an electrically operated switch that utilizes an electromagnet to either open or close an electrical circuit. Essentially, it is an electromechanical switch that can turn a circuit on or off. The relay contains a flexible mechanical component that can be activated or controlled electrically by an electromagnet.

While traditional switches are manually operated to open and close circuits, a relay serves a similar function, but instead of manual control, it is triggered by an electrical signal to control the circuit's on/off state. Relays are commonly used to control high-power circuits using low-power signals.

Relays can perform various functions depending on their application. They can act as electrical switches or as amplifiers to convert smaller currents into larger ones. Additionally, relays are useful for controlling low-power signal circuits or when multiple circuits need to be controlled by a single signal.

The most basic type of relay is the Single Pole Single Throw (SPST) relay, which has one switch and one possible connection. A Double Pole Double Throw (DPDT) relay, on the other hand, has two poles and two throws for each pole, and is often used in motor direction control circuits to reverse phase or polarity.

How Does a Relay Work?

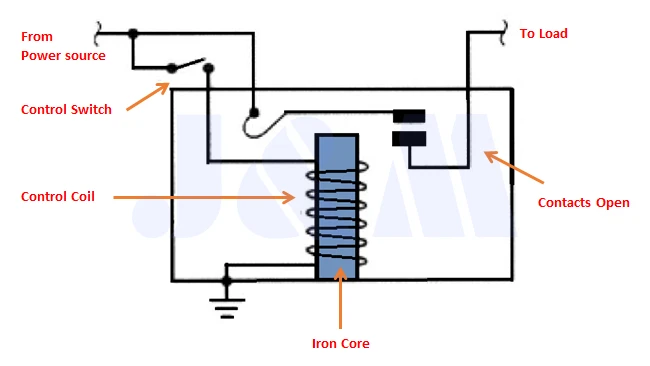

In a relay, the control coil surrounds an iron core. When current flows through the control coil, it energizes the electromagnet, intensifying its magnetic field. This causes the electromagnet to connect the power source through its contacts to the load and the control switch. The movable contact arm is attracted to the fixed arm, closing the circuit and allowing current to flow. Once the relay is de-energized, the contact arm moves back in the opposite direction, breaking the circuit and creating an open connection.

When the coil current is turned off, the movable armature returns to its original position. The force that causes this movement is mainly due to the magnetic force, assisted by a spring and gravity.

Relays can be used in both low-voltage and high-voltage applications. In low-voltage applications, they help reduce noise within the circuit, while in high-voltage applications, they minimize arcing.

Types of Relays

Relays come in several types, each suited to specific application needs. The most common types of relays include:

• Electromechanical Relay

Electromechanical relays consist of a coil and mechanical contacts. They are commonly used for controlling high-power electrical devices such as home appliances, automotive circuits, and industrial machinery. They can handle larger currents and typically have a longer lifespan.

• Solid State Relay

Solid-state relays use semiconductor materials instead of mechanical contacts to switch circuits. This design eliminates physical wear and tear, provides faster response times, and offers a longer lifespan. Solid-state relays are typically used in applications requiring high-frequency switching, such as precision instruments and advanced automation systems.

• Automotive Relay

Automotive relays are specifically designed for vehicle electrical systems, capable of handling high current loads. They ensure that various electrical components in a vehicle, such as the engine, lighting, and air conditioning, operate safely and efficiently.

Common Applications of Relays

Relays are used in a variety of industries and devices. Some of the most common applications include:

• Industrial Automation Control

In industrial automation, relays are used to control machinery, transmit signals, and protect circuits from overloads. They allow different devices to work together by switching circuits, and they automatically disconnect the power in the event of a fault, ensuring safety.

• Automotive Electrical

SystemsIn automotive electrical systems, relays control functions such as engine start, lighting, and climate control. They handle high-power loads in vehicle circuits, ensuring the safe operation of electrical components.

• Home Appliances

Relays are widely used in household appliances, such as washing machines and microwaves, for circuit control and switching. They ensure that electrical devices operate properly by controlling when the circuits are opened and closed.

How to Choose the Right Relay

When selecting a relay for your project, there are several factors to consider:

Current and Voltage Ratings

The relay's current and voltage ratings are crucial to ensure it can handle the power required for your application. Choose a relay with ratings that meet the requirements of your circuit to avoid overloading.

Relay Type

Depending on your application, you may need a specific type of relay. For instance, automotive relays are suitable for vehicle circuits, while solid-state relays are ideal for high-frequency operations or where quick switching is required.

Control Signal

Select the relay type based on the control signal in your circuit. If you are using low current signals, opt for a relay with a low-voltage coil. If higher current control is needed, choose a relay that can handle higher power.

Safety Features

Relays should also come with appropriate safety features, especially for high-voltage applications. Ensure that the relay has overload protection and short-circuit protection to prevent damage to your system.

Relay Circuit Design Tips

For beginners, designing a relay circuit can seem complicated, but with some basic design tips, you can easily incorporate relays into your systems:

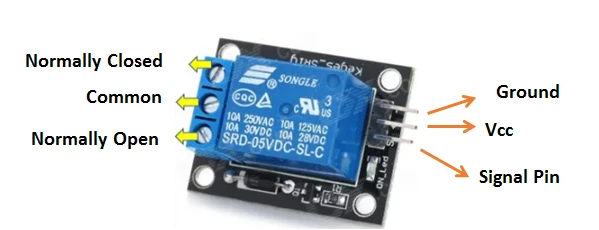

• Choose the Correct Contact Type Relays come with different contact types (normally open, normally closed), so it's essential to select the right type for your circuit. Normally open contacts are used when the relay needs to close the circuit when activated, while normally closed contacts are used when the circuit needs to remain closed when the relay is not activated.

• Use a Diode for Coil Protection When designing a relay circuit, it’s a good practice to add a diode in parallel with the relay coil (reverse parallel connection) to protect the rest of your circuit from voltage spikes caused by the coil when it is de-energized.

• Ensure Proper Power Supply Make sure that the voltage and current ratings of the relay coil match your control circuit. Using the wrong voltage can cause the relay to malfunction or even damage your control system.

Summary

Relays are essential electronic components that are widely used in various control systems, from industrial automation to automotive electrical systems to household appliances. By understanding the relay’s working principle, different types, applications, and how to select the right relay, you can ensure your projects run smoothly and efficiently.

Whether you are a beginner or an experienced engineer, mastering the basics of relays and their design can help you achieve better results in your electronics projects.

Frequently Asked Questions (FAQs)

What is the difference between a relay and a switch?

A relay is an electrically controlled switch, while a manual switch is operated by hand. Relays are typically used for automation and remote control, while switches are for manual operation.

How do you test a relay?

To test a relay, use a multimeter to check the resistance of the coil and the state of the contacts. If the relay coil is energized and the contacts are switching properly, the relay is functioning correctly.

What is the lifespan of a relay?

The lifespan of a relay depends on its type and usage. Electromechanical relays typically last for millions of operations, while solid-state relays last much longer, with lifespans that can reach tens of millions of operations.
