In electronic circuits, quartz crystals and ceramic resonators are vital for timing and frequency control. They are indispensable in both consumer electronics and industrial equipment. Quartz crystals are crucial in clocks, microcontrollers, and communication systems that demand high accuracy due to their precision and stability. In contrast, ceramic resonators offer a cost-effective and compact solution, suitable for applications that can tolerate minor frequency variations. Choosing the right component depends on understanding the differences between these two.

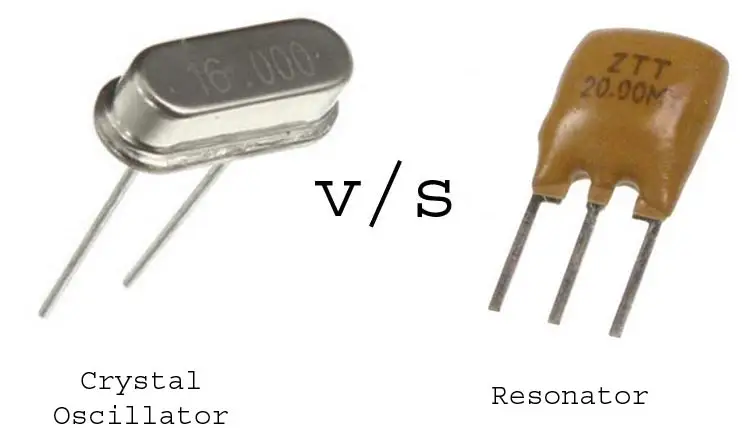

Quartz Crystals Vs Ceramic Resonator

What are Quartz Crystals?

Quartz crystals are piezoelectric devices that provide accurate frequency and timing control in electronic circuits. These components consist of thin slices of quartz crystal cut at specific angles. When an electric field is applied, they vibrate at a stable and precise frequency. Their stability makes them essential in applications like watches, clocks, microprocessors, and communication systems. They are widely used in high-precision electronic applications due to their consistent oscillations, which enhance their reliability. As a fundamental component of modern electronics, quartz crystals are robust, reliable, and capable of maintaining accuracy in various environmental conditions.

What is a Ceramic Resonator?

Ceramic resonators generate clock signals and maintain timing in various circuits due to their compact size and cost-effective design. When electrically stimulated, these resonators vibrate at a particular frequency. In applications where high accuracy is less critical, ceramic resonators are often preferred over quartz crystals despite being less precise and stable. These signals are commonly used in microcontrollers, automotive systems, and consumer electronics to accommodate slight frequency variations. Many timing and frequency control needs can be met with ceramic resonators due to their low cost, smaller size, and ease of integration.

Quartz Crystals Vs Ceramic Resonator: Differences

Quartz crystals and ceramic resonators are used in clocks, microcontrollers, and communication devices to generate precise frequencies. The construction, performance, and applications of these two components differ significantly. A detailed comparison can be found here:

Material and Construction

Quartz Crystals

• Quartz crystal, a naturally occurring material, is used to create this crystal pendant.
• Cutting and shaping quartz produces a resonator whose vibration is precisely synchronized with an electric field.
• Piezoelectricity means that quartz generates an electric charge when mechanical stress is applied.
• Ceramic Resonators:
• Piezoelectric ceramics, typically lead zirconate titanate (PZT), are used in this application.
• Synthetic materials that allow a wide range of frequency selections are created through the manufacturing process.
• When connected to metal electrodes, an electric field can cause ceramic resonators to vibrate at specific frequencies.

Frequency Stability and Accuracy

Quartz Crystals:

• Temperature and time drift are minimal over time, resulting in a highly stable system.
• Frequency tolerance generally ranges from a few tenths of a part per million to a hundredth of a part per million (ppm).
• High-frequency clocks and communication systems can benefit from the accurate and stable frequencies provided by quartz crystals.

Ceramic Resonators:

• They are less stable than quartz crystals over time and temperature.
• Frequency tolerance typically varies between 0.5% and 1%.
• Suitable for applications that require less precision, but are not as critical as those needing ultra-high precision.
• Temperature Coefficient
  Quartz Crystals:
• The frequency is relatively unaffected by temperature changes due to its low temperature coefficient.
• Some quartz crystals can maintain frequency over a wide temperature range.
• Ceramic Resonators:
• Frequency changes more frequently with temperature variations due to a higher temperature coefficient.
• Less suitable for environmentally sensitive applications.
• Aging
  Quartz Crystals:
• The aging rate is very low, usually less than 5 ppm per year.
• Frequency remains consistent over time in long-term applications.
• Ceramic Resonators:
• Aging rate is higher compared to quartz crystals.
• Frequency may shift noticeably over time.

Applications Differences

Quartz Crystals

Timekeeping Devices

• Timekeeping devices depend on quartz crystals for accurate timekeeping due to their precise oscillations.
• Quartz crystals oscillate at a consistent frequency when exposed to an electric field, allowing wristwatches and digital clocks to keep accurate time.
• Timekeeping is essential in sports and scientific experiments, where precision chronographs are used.
• Quartz clocks are used in everyday applications, such as household wall clocks and alarm clocks.

Communication Systems

• Quartz crystals are used in various communication systems to provide stable reference frequencies.
• They provide frequency stability for local oscillators in amateur and professional radio transceivers.
• Quartz crystals clock mobile phone processors and ensure accurate communication timing.
• Essential for satellite communication systems, enabling reliable communication between ground stations and satellites.

Computers and Microprocessors

• Quartz crystals are crucial in computing as they ensure the correct speed of microprocessors and other digital circuits.
• They are a key component in computers, servers, and embedded systems, where performance is critical.
• Used as real-time clocks (RTCs) in computers and embedded systems, providing essential timekeeping functions even when the system is off.

Measurement and Test Equipment

• Quartz crystals provide reference frequencies in measurement and test equipment.
• Used in frequency counters to accurately measure the frequencies of other signals.
• Oscilloscopes rely on quartz crystals for stable time bases to measure electrical signals over time with high precision.
• Ensure accurate and reliable measurements when used in signal generators for testing and calibration.

Navigation Systems

• Navigation systems require quartz crystals for precise timing to accurately calculate positions.
• GPS receivers synchronize with GPS satellite signals to track their location.
• Quartz crystals are essential for accurate positioning and safe navigation in marine and aviation navigation systems.
• Modern navigation technologies rely on quartz crystals to maintain accuracy and reliability.
• Ceramic Resonator

Consumer Electronics

• Ceramic resonators are used in consumer electronics for their cost-effectiveness and compactness.
• They provide timing functions in appliances such as televisions, radios, and microwave ovens.
• Ensure clear reception and frequency stabilization in radios and television sets.
• Used for accurate timing and control in everyday appliances like washing machines.

Microcontroller-Based Systems

• Ceramic resonators are often used for clocking purposes in microcontroller-based systems where precise timing is not as critical.
• They provide a stable clock signal to the microcontroller, facilitating the execution of various tasks and operations.
• Commonly used in embedded systems for a range of applications, from simple gadgets to complex industrial machines.
• Balance performance with cost, making them a reliable and affordable choice for microcontroller-based products.

Automotive Electronics

• Ceramic resonators are used in automotive ECUs for functions that do not require ultra-high precision.
• Used in body control modules, infotainment systems, and non-critical engine control modules.
• Provide smooth and reliable operation by maintaining stable frequencies.
• Suitable for automotive applications due to their ability to withstand harsh environmental conditions.

Telecommunication Devices

• Ceramic resonators are used in wireless communication systems such as cordless phones and walkie-talkies.
• Ensure clear transmission and reception of signals, reducing interference.
• Suitable for a wide range of telecommunication applications, especially when space and cost are a concern.

Remote Controls

• Ceramic resonators generate the carrier frequency for infrared (IR) signals in remote controls for televisions, air conditioners, and other household appliances.
• Ensure reliable communication between the remote control and the appliance by transmitting signals at the correct frequency.
• Popular in remote control technology due to their small size and low cost.

Final Thoughts

In conclusion, the electronics industry utilizes a variety of resonators, such as quartz crystals and ceramic resonators. Quartz crystals are renowned for their high precision and stability, making them ideal for critical applications like timekeeping and communication systems. On the other hand, ceramic resonators, though less precise, provide a cost-effective solution for consumer electronics and non-critical timing tasks. When selecting the most suitable resonator for a specific application, factors such as accuracy, stability, cost, and size should be carefully evaluated.

Frequently Ask Questions

What is the difference between a crystal and a resonator?

Crystals are composed of quartz material, whereas resonators can be made from quartz, piezoelectric ceramic or other types of materials. It's important to refer to the datasheet's electrical schematics, as the packages may contain additional internal circuitry in relation to the pins.

What is the difference between ceramic and quartz resonators?

Quartz crystal resonators and ceramic resonators function in a similar manner, both vibrating mechanically when an AC signal is applied. The key distinction is that a quartz crystal resonator is crafted from a quartz crystal, while a ceramic resonator is composed of ceramic components.

What is a ceramic resonator used for?

A ceramic resonator is frequently employed as a substitute for quartz crystals as a reference clock or signal generator in electronic circuits, thanks to its lower cost and smaller size. Its lower Q factor and higher achievable frequency range can be advantageous in the use of TCXOs, which are temperature-compensated crystal oscillators.

What are the disadvantages of crystal oscillators?

Compared to the crystal resonator, the crystal oscillator has some drawbacks. Its signal level is fixed, necessitating the selection of an appropriate output level, which limits its flexibility. Additionally, it tends to be more expensive. Moreover, the quartz oscillator has a longer start-up time.

What's better quartz or ceramic?

Quartz is more durable and resilient than ceramic. It can withstand pressure and heavy loads without breaking. It also has a high resistance to scratching, and you can cut directly on it, though doing so may dull your knives. In contrast, ceramic is less durable and is more susceptible to chipping.

Do crystal resonators have polarity?

A 2-lead crystal or resonator can be rotated in a circuit since it doesn't have polarity. However, crystals and resonators with more than two leads can sometimes be rotated 180 degrees, but not always. The only way to determine this is by checking the schematic in the datasheet.

What is a quartz resonator?

A quartz resonator utilizes the piezoelectric properties of a quartz crystal. The piezoelectric effect involves the generation of an electric charge on the crystal's surface due to mechanical stress, and conversely, the deformation of the crystal when an electric field is applied.
