Solenoids are electromagnetic devices that convert electrical energy into mechanical motion. They are widely used in various industries for applications that require controlled linear motion. From automotive to medical devices, solenoids play a crucial role in ensuring efficiency and precision. In this article, we’ll explore the different types of solenoids, their applications, and how to choose the right solenoid for your needs.

What Are Solenoids?

Electromagnets

Electromagnets are a type of magnet formed by winding a wire around an iron core. When an electric current flows through the wire, it generates a magnetic field around the iron core. The magnetic field disappears as soon as the current is turned off. The core of the electromagnet is typically made from ferromagnetic or ferrimagnetic materials, with iron being the most commonly used material.

The strength of the magnetic field produced by an electromagnet can be controlled by adjusting the electric current, unlike a permanent magnet, which does not require power and has a constant magnetic field. Electromagnets are widely used in applications such as solenoids, MRI machines, hard drives, relays, motors, loudspeakers, and generators.

Now that we have an understanding of electromagnets, let's delve into solenoids.

Solenoids

A solenoid is a specific type of electromagnet designed to create a controlled magnetic field by passing electric current through a tightly wound coil of wire. When current flows through the coil, it produces a magnetic field that causes a soft iron plunger to move. Essentially, a solenoid converts electrical energy into mechanical motion.

Solenoids were developed as part of the pursuit to create more powerful and efficient magnets. The term "solenoid" was introduced in 1823 by French physicist and mathematician André-Marie Ampère to describe this helical coil structure.

Note: An electromagnet with a fixed core is not classified as a solenoid.

Types of Solenoids

• Electromagnetic Solenoids

Electromagnetic solenoids are the most common type. They are designed for applications that require linear motion. These solenoids use the magnetic field generated by the coil to push or pull a plunger, making them ideal for tasks such as locking mechanisms, automation, and relay controls.

• Linear Solenoids

A linear solenoid provides a direct push or pull along the axis of the coil. These solenoids are typically used in automation systems for precise, controlled movements, such as in robotics or medical devices.

• Mini Solenoids

Mini solenoids are compact in size but can still deliver significant force. These are used in applications where space is limited, such as in small-scale electronic devices or consumer products. Their small size makes them ideal for portable gadgets or precision machinery.

• Solenoid Valves

Solenoid valves are designed to control the flow of fluids or gases in systems. By using an electrical current to control the opening and closing of the valve, they are commonly used in hydraulic systems, pneumatic systems, and water treatment plants.

• DC Solenoids

DC solenoids operate with direct current (DC) power sources and are often used in automotive and energy-efficient applications. Their ability to provide high force with low power consumption makes them a popular choice for devices that require intermittent actuation.

Solenoid Working Principle

The solenoid operates based on the principle of electromagnetism. When electric current passes through the coil, it generates a magnetic field. By placing a metal core inside the coil, the magnetic flux lines become concentrated around the core, which enhances the magnetic induction compared to a coil with just an air core.

Most of the magnetic flux is focused on the core, although some flux appears at the ends of the coil, and a small portion extends outside the coil.

The magnetic strength of a solenoid can be increased either by increasing the number of turns in the coil or by increasing the current flowing through it.

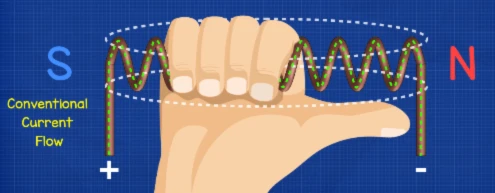

Like all magnets, an activated solenoid has both positive and negative poles, allowing it to attract or repel objects depending on their magnetic properties.

Key Applications of Solenoids

Solenoids are essential in a wide range of industries due to their versatility. Here are some of the primary applications:

• Automation and Robotics

Solenoids are used in robotic actuators to control grippers and other moving parts. Mini solenoids and linear solenoids are particularly common in these applications because they provide precise movement with minimal space requirements.

• Automotive

In the automotive industry, solenoids control various mechanisms such as door locks, fuel injectors, and transmission systems. DC solenoids are often used in car starter motors and other electrical systems that require high force with minimal power consumption.

• Medical Devices

Electromagnetic solenoids are widely used in medical equipment, such as in syringe pumps, patient monitoring systems, and drug delivery devices. Their precise linear motion is critical in applications where accuracy and reliability are paramount.

• Industrial Machinery

Solenoid actuators are used to automate processes like material handling, sorting, and packaging. High-force solenoids are often integrated into heavy-duty machinery for tasks requiring substantial pushing or pulling force.

HVAC Systems Solenoid valves are critical in controlling the flow of refrigerants and fluids in HVAC systems. Their ability to operate reliably under pressure is a key factor in ensuring system efficiency and temperature control.

How to Choose the Right Solenoid

When selecting a solenoid for a specific application, there are several factors to consider:

• Force Requirements

The amount of force required for the application will determine the size and power of the solenoid. For example, high-performance solenoids are necessary for heavy-duty applications in machinery, while mini solenoids may be suitable for lighter, more compact devices.

• Power Source

Whether the solenoid operates on DC power or AC power is another important factor. For portable devices or automotive applications, DC solenoids are typically preferred due to their efficiency and ease of integration.

• Size and Space

Constraints In applications where space is at a premium, mini solenoids or compact solenoid actuators are ideal choices. Their small size and ability to produce significant force in tight spaces make them essential in applications like consumer electronics and medical devices.

• Durability and Reliability

Solenoids are often used in environments with high demands for durability. For industrial and automotive applications, selecting a high-voltage solenoid or a solenoid with a long life cycle is essential for reliable performance over time.
