What is a Solenoid Switch?

A solenoid switch is a widely used control device designed to interrupt or activate current circuits. It operates on the principle of electromagnetism, utilizing an electromagnetic coil to toggle devices on and off. These switches are frequently found in various electrical equipment, automation systems, and power distribution networks, playing a crucial role in circuit control. The solenoid switch comprises an electromagnetic coil, contacts, and a drive mechanism. When the electromagnetic coil is energized, it generates a magnetic field that attracts or separates the contacts, thereby opening or closing the circuit.

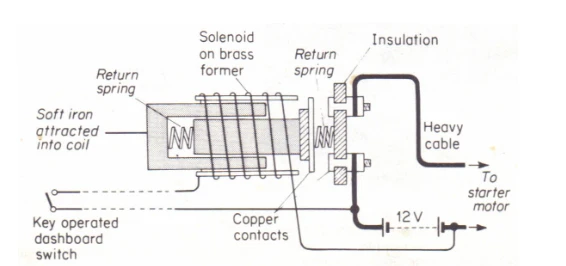

Exploring the detailed structure of a solenoid switch reveals that several key components work together to enable its electromechanical function. At the heart of the solenoid is a coil, typically made from copper wire, which wraps around the core. When an electric current flows through the coil, it creates a magnetic field. The core, made from ferromagnetic material, plays a vital role in enhancing and concentrating this magnetic field. By providing a magnetic flux path, the core significantly boosts the solenoid's performance. The plunger, or armature, is a movable part usually made from ferrous material, positioned within the solenoid. When the solenoid is energized, the plunger is drawn toward the core. A spring mechanism ensures that the plunger returns to its original position when the electric current is cut off. This spring helps reset the solenoid switch to its default state when inactive. The coordinated interaction of these components enables solenoid switches to operate reliably and effectively in a wide range of applications.

Understanding Solenoids: Applications, Types, and Key Considerations

Solenoid Switch Features

Electromagnetic Functionality: Solenoid switches are electrically powered and operate via electromagnetic principles.

Highly Reliable: With minimal moving components, solenoid switches offer high durability and dependability.

Broad Voltage Compatibility: These switches can function across a wide voltage spectrum, from low-voltage DC systems to high-voltage AC applications.

Compact Design: Their small size makes solenoid switches perfect for use in confined spaces.

Fast Switching: Solenoid switches provide quick on/off action, making them ideal for applications that require rapid response.

Energy Efficient: Consuming very little power, solenoid switches are both energy-efficient and cost-effective.

Weatherproof: Many solenoid switches are built to withstand outdoor conditions, ensuring reliable operation in various environments.

Customizable Features: Solenoid switches can be tailored to specific needs, including mounting styles, contact arrangements, and voltage ranges.

How Does a Solenoid Switch Work?

A solenoid switch functions by utilizing electromagnetic principles. It includes a wire coil, usually wrapped around a movable core called an armature. The core mechanism relies on creating an electromagnetic field when an electric current passes through the coil.

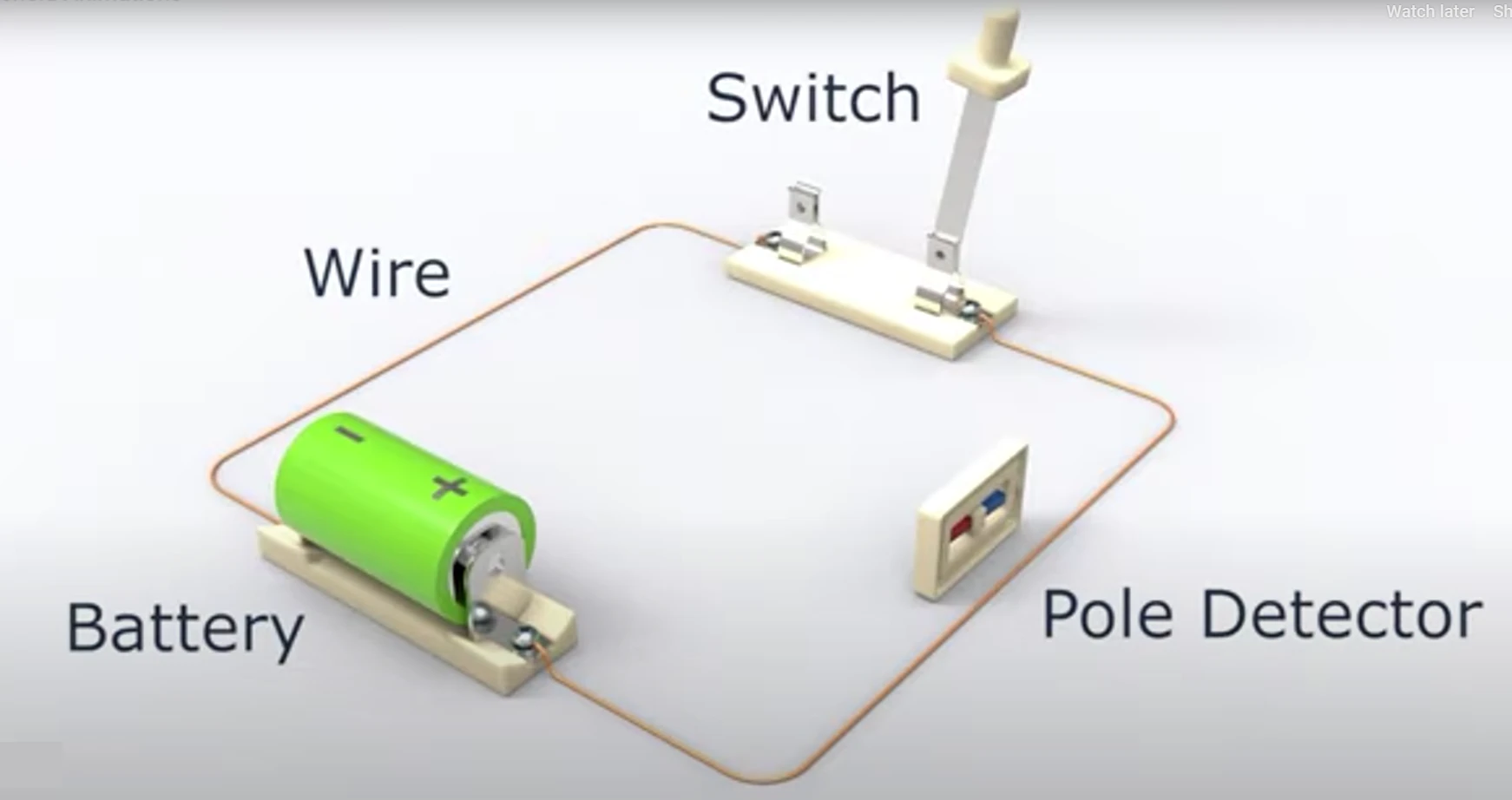

Electric Current Flow: When an electric current passes through the coil, it generates a magnetic field around it due to the movement of electrons in the wire.

Electromagnetic Field Creation: This magnetic field induces magnetism in the armature, the movable core inside the solenoid.

Armature Motion: Depending on the current’s direction, the armature is either drawn toward or pushed away from the coil by the electromagnetic force, causing it to move.

Mechanical Action: The movement of the armature is used to carry out mechanical tasks. In a solenoid switch, this often involves opening or closing valves, switches, or other components.

Energy Conversion: The solenoid converts electrical energy into mechanical movement and force, which is crucial in applications requiring controlled switching or motion.

In a solenoid switch, the armature's movement is intended to open or close the switch contacts, which controls the flow of electrical current by either allowing or stopping it. This precise switching mechanism is widely used in various devices and systems, such as automotive starters and industrial control equipment.

In conclusion, a solenoid switch utilizes electromagnetic forces generated by an electric current passing through a coil to move the armature, enabling mechanical actions like switching circuits on or off. This electromechanical function makes solenoid switches highly adaptable components in many industries and applications.

Applications of Solenoid Switches

Solenoid switches are widely used across different industries due to their ability to control electrical circuits effectively.

Motor Control:

Solenoid switches are essential in motor control applications, where they manage the starting and stopping of electric motors by regulating electrical currents. They are commonly found in industrial machinery, automotive systems, and other setups requiring precise motor control.

Lighting Control:

In lighting systems, solenoid switches control the on/off operation of lights. They offer a dependable and efficient way to manage the electrical circuits powering lighting fixtures in homes, businesses, and industrial environments.

Air-Conditioning Control:

Solenoid switches play a role in air-conditioning systems by controlling components such as compressors, fans, and dampers. They help regulate the electrical current flow to maintain the desired temperature and ventilation.

Automotive Applications:

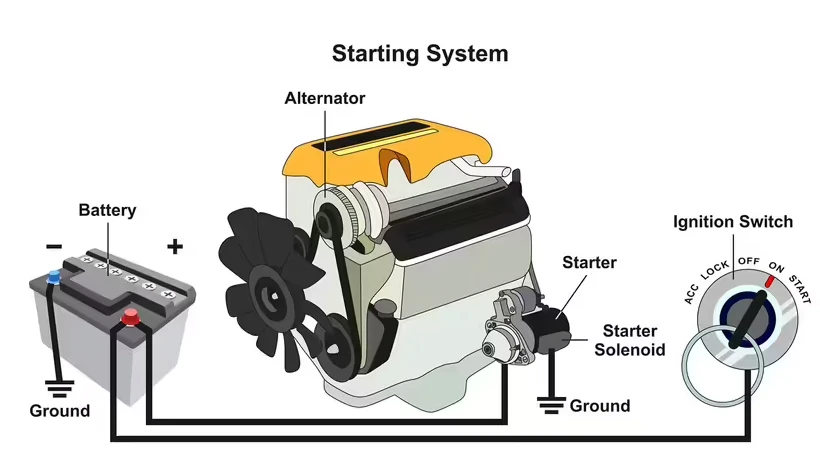

In the automotive sector, solenoid switches are widely used in various systems. They are critical components in starters, fuel injectors, transmission control, and other systems that demand precise electrical management.

Industrial Automation:

Solenoid switches are key in industrial automation, where they control various devices and components during manufacturing processes. They are used to operate valves, engage clutches, and control the movement of mechanical parts.

Security Systems:

In security systems, solenoid switches are used in electronic locks and access control systems, enabling controlled locking and unlocking in response to electronic signals or keycards.

Medical Equipment:

In medical devices, solenoid switches are utilized to control the movement of robotic arms, adjust positions in imaging machines, or regulate fluid flow in medical instruments.

Appliance Control:

Solenoid switches are also found in household appliances, where they control specific functions such as water flow or door locks in washing machines, dishwashers, and other appliances.

These examples showcase the versatility of solenoid switches in providing reliable and precise electrical control, making them indispensable components in a variety of devices and systems.
