Name: DSP1-L2-DC24V-F
Brand: Panasonic Electric Works
SKU: JM-DSP1-L2-DC24V-F
Availability: InStock

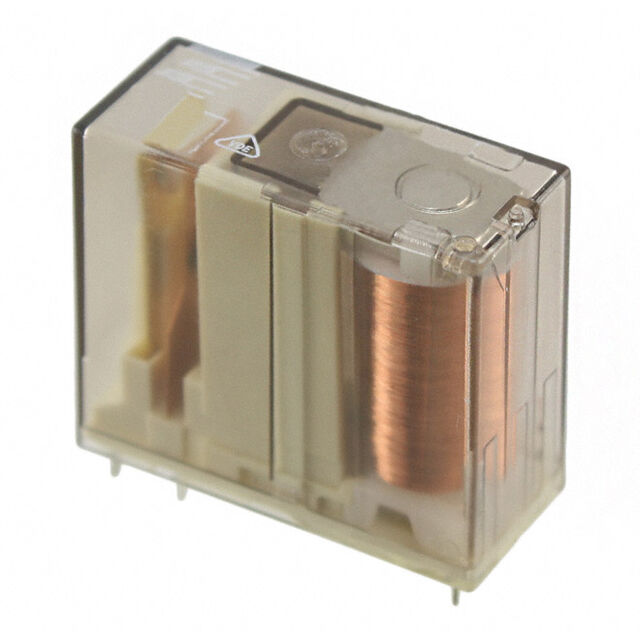

Panasonic Electric Works DSP1-L2-DC24V-F

View All Power Relays, Over 2 Amps by Panasonic Electric Works

Part Number:
DSP1-L2-DC24V-F
Manufacturer:
Panasonic Electric Works
Category:
Power Relays, Over 2 Amps
RoHs:
RoHS Compliant
Datasheet:
DSP1-L2-DC24V-F_Datesheet
Description:
General Purpose Relay DPST-NO/NC (1 Form A, 1 Form B) 24VDC Coil Through Hole
In stock 8,781

" Not available to buy online? Want the lower wholesale price? Please send RFQ, we will respond immediately

Leave Us A Message!

[email protected]

We`re not around but we still want to hear from you! Leave us a note:

SEND

*You can contact us directly on WhatsApp!

Specifications

Type

Paramete

Type

Paramete

Coil Insulation

Features

Switching Voltage

250VAC, 125VDC - Max

Relay Type

General Purpose

Base Product Number

DSP1-L

Coil Voltage

24VDC

Contact Rating (Current)

5 A

Qualification

Release Time

5 ms

Approval Agency

cURus, VDE

Termination Style

PC Pin

Contact Form

DPST-NO/NC (1 Form A, 1 Form B)

Grade

Mounting Type

Through Hole

Operating Temperature

-40°C ~ 65°C

Load - Max Switching

1500VA, 625W

Coil Resistance

1.92 kOhms

Contact Material

Silver Tin Oxide (AgSnO)

Must Operate Voltage

19.2 VDC

Seal Rating

Sealed - Fully

Coil Type

Latching, Dual Coil

Mfr

Panasonic Electric Works

Must Release Voltage

Coil Current

12.5 mA

Operate Time

10 ms

Overview

DESCRIPTION

· The document provides a detailed overview of a specific electronic component or system.

· It includes technical specifications, operational guidelines, and safety information.

FEATURES

· High efficiency and reliability in performance.

· Compact design suitable for various applications.

· Advanced safety features to prevent operational hazards.

APPLICATIONS

· Suitable for use in industrial automation systems.

· Ideal for integration into consumer electronics.

· Effective in automotive and aerospace technologies.
