DESCRIPTION

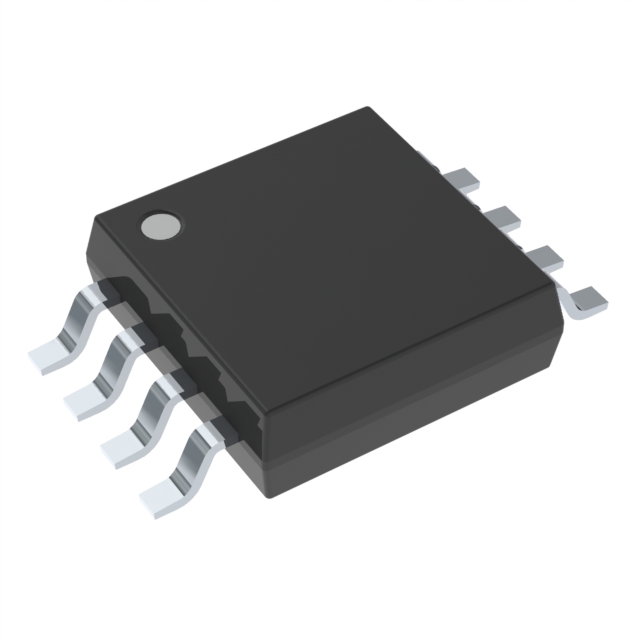

· The MAX2622/MAX2623/MAX2624 are monolithic voltage-controlled oscillators (VCOs) with integrated oscillator and output buffer in an 8-pin µMAX package.

· On-chip inductor and varactor elements simplify application.

· Factory preset center frequency and frequency span ensure guaranteed performance.

· External tuning voltage controls oscillation frequency.

· On-chip 50 Ω matched output buffer.

· Operates from +2.7V to +5.5V with 8mA supply current; shutdown mode reduces current to 0.1µA.

FEATURES

· Fully monolithic design.

· Guaranteed performance.

· On-chip 50 Ω output match.

· Wide frequency range: 855MHz to 998MHz across models.

· Single-supply operation from +2.7V to +5.5V.

· Low-current shutdown mode.

· Compact 8-pin µMAX package.

APPLICATIONS

· 866MHz to 868MHz European ISM Band (MAX2622).

· DECT 1/2 Frequency LO (MAX2623).

· 902MHz to 928MHz ISM Band with ±10.7MHz IF (MAX2623).

· 902MHz to 928MHz ISM Band with 45MHz to 70MHz IF (MAX2624).
