Description

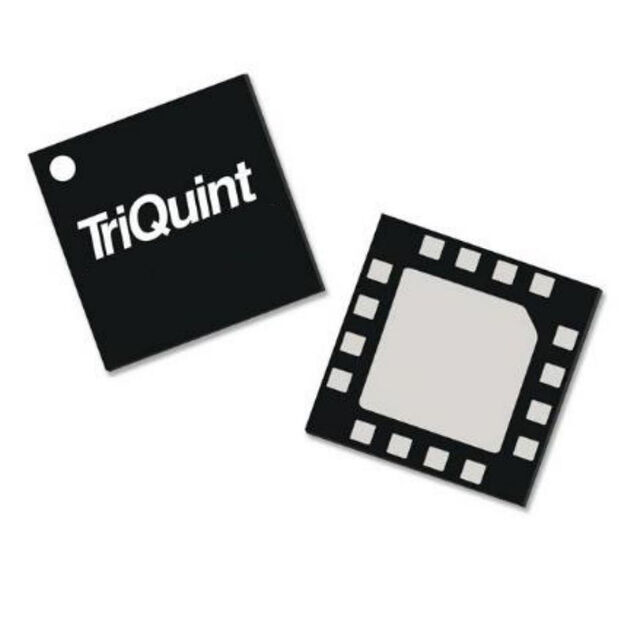

Qorvo's TQP3M9018 is a cascadable, high linearity gain block amplifier designed for a wide range of frequencies. It is packaged in a low-cost surface-mount housing, specifically a lead-free, green, and RoHS-compliant 16-pin 3 x 3 mm QFN package.

Features

• High Gain and Linearity: At 1.9 GHz, the amplifier provides a typical gain of 20.5 dB and an output third-order intercept point (OIP3) of +37 dBm.
• Low Noise Figure: It has a low noise figure of 1.3 dB, making it suitable for applications where signal integrity is crucial.
• Low Current Consumption: The device operates with a current draw of only 85 mA.
• Broad Frequency Range: It covers the frequency band from 0.05 to 4 GHz.
• Internal Matching and Biasing: The amplifier is internally matched using a high-performance E-pHEMT process and includes an internal active bias circuit for stable operation over bias and temperature variations.
• Simple External Components: It requires only an external RF choke and blocking/bypass capacitors for operation from a single +5 V supply.

Types

The TQP3M9018 is a type of gain block amplifier, specifically designed for high linearity and low noise applications. It is part of Qorvo's line of RF amplifiers that are optimized for performance in various wireless communication systems.

Applications

• Wireless Infrastructure: Suitable for use in base stations and other network infrastructure equipment where high linearity and low noise are required.
• Defense and Aerospace: Ideal for radar and communication systems in defense and aerospace applications due to its high performance and reliability.
• Telecommunications: Can be used in various telecommunication equipment, including CDMA, EDGE, LTE, and WCDMA systems, to enhance signal quality and system performance.
• Industrial and Scientific: Applicable in industrial and scientific equipment that requires precise signal amplification and processing.
