Overview of RF Mixers

RF mixers are essential components in radio frequency (RF) technology, used for translating electromagnetic signal frequencies across various applications. They are vital in both upconversion and downconversion processes, allowing the manipulation of signal frequencies while preserving other signal characteristics such as phase and amplitude.

RF mixers

Applications of RF Mixers

RF mixers are used in a range of high-reliability applications, including:

Military radar

Cellular base stations

Electronic warfare

C4ISR (Command, Control, Communications, Computers, Intelligence, Surveillance, and Reconnaissance)

Missile defense

CNI (Command, Control, and Communications)

Space applications

Manned and unmanned military aircraft

Ship-to-ship communications

Advantages of RF Mixers

The advantages of using RF mixers include:

Wide Bandwidth: Suitable for a broad range of frequency operations.

Customization: Capable of being tailored for specific applications.

Optimized Performance: Designed to meet the performance needs of advanced applications.

High Integration: Compatible with other components in the signal chain.

Lower Power Consumption: More energy-efficient designs.

Specifications of RF Mixers

RF mixers come with various specifications:

Frequency Range: Capable of handling frequencies from 1 MHz to 220 MHz.

Gain: Varies depending on the model and application.

Noise Figure: A measure of the noise added to the signal.

Current and Voltage: Operating current and voltage requirements.

Features of RF Mixers

Key features of RF mixers include:

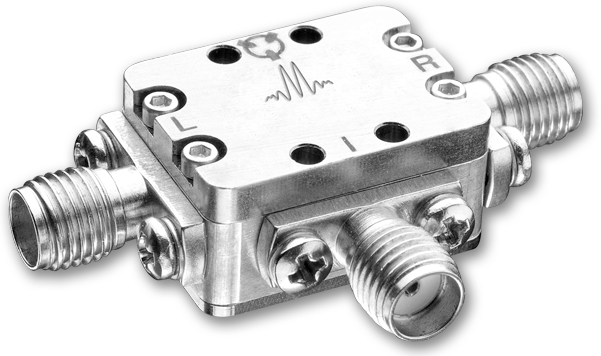

Three-Port Design: Consisting of intermediate frequency (IF), radio frequency (RF), and local-oscillator (LO) ports.

Topologies: Available in Unbalanced, Single Balanced, Double Balanced, Triple Balanced, Image Reject, Frequency Doublers, and Diode-based technologies.

Nonlinearity: Utilizing devices like Schottky diodes, FETs, or other transistors for nonlinear operations.

Performance: High-performance mixers may use four or eight diodes for improved functionality.

Frequently Asked Questions

What is the Dynamic Range of an RF Mixer?

The dynamic range of an RF mixer is characterized by the 1-dB compression point and the mixer noise figure. Passive mixers typically have similar thermal noise or noise figures, so the dynamic range is often determined by the 1-dB compression point.

What is the Difference Between Active and Passive RF Mixers?

Passive Mixers: Widely used for their simplicity, wide bandwidth, and good intermodulation distortion (IMD) performance.

Active Mixers: Used primarily for RFIC implementation, providing conversion gain, good isolation between signal ports, and requiring less power to drive the LO port.

Manufacturing and Quality of RF Mixers

RF mixers are manufactured with a focus on quality and consistency, meeting commercial and military standards. Efficient manufacturing procedures monitor critical production phases to ensure a cost-effective, high-quality product. They are available in various industry-standard packages, including surface mount, drop-in, and connectorized housings, making them ideal for high-reliability applications.
