Description

Rotary compressors are a type of air compressor that works by trapping air in a chamber and reducing its volume to increase pressure. They are known for their smooth and continuous operation, making them a popular choice for various applications. These compressors can be either positive displacement or dynamic, depending on the design. Rotary compressors are widely used in industries due to their efficiency and versatility.

Rotary Compressors

Features of Rotary Compressor

• A rotary compressor consists of three main moving parts: a blade, a roller, and an eccentrically mounted roller, all situated within a closed chamber. These components collaborate to boost the pressure of low-pressure gas to a high-pressure state. Oil injected into the rotors helps lower the temperature of the compressed air and acts as a hydraulic seal. Air enters the compressor on the “suction side” of the air-end, where it is processed through the rotors. After exiting the compressor, the air undergoes a separation process. The oil is then recirculated back into the system, while the air is released.
• Oil-sealed rotary compressors find application in a wide range of industrial settings. They power pneumatic tools and are utilized in gas refrigeration and hydrocarbon processing. These compressors are particularly well-suited for industries that experience significant fluctuations in air demand throughout the day.
• Rotary compressors come in two main types: reciprocating and rotary. Reciprocating compressors are typically used in smaller-scale applications, such as retail and home improvement, while rotary screw air compressors are employed in large industrial operations. These machines can handle up to 900 horsepower. The most prevalent type of rotary compressor is the helical twin screw model, which features two interlocking rotors that capture air. Rotary compressors are commonly available in both lubricated and oil-free configurations. The three primary components of a rotary compressor include an oil separator, a motor drive, and a rotor.

Types

1. Scroll Compressors: Use two spiral elements to compress air. They are quiet and efficient.
2. Screw Compressors: Utilize two rotating screws for efficient compression. They are great for heavy-duty applications and offer high efficiency and continuous operation.
3. Vane Compressors: Employ sliding vanes to compress air in chambers. They have a simple design and are easy to maintain, but may require frequent vane replacement due to wear over time.

Benefits of Liquid Ring Rotary Air Compressor

The liquid ring pump serves as an efficient alternative to traditional air compressors. It functions by compressing gas via an impeller that rotates within a cylindrical casing. During this process, a liquid (typically water) forms a dynamic ring against the casing's inner wall, thereby reducing the volume of the gaseous medium. The liquid ring subsequently expels the compressed medium through a guide plate.

Liquid ring rotary air compressors are capable of generating compressed air from high-pressure gas and liquid sources. They are designed to run at high speeds while keeping noise levels low. Their synchronized operation negates the need for a gearbox. Thanks to their low-friction design, they experience minimal wear and tear and perform well even at partial loads.

Applications

• Manufacturing and Industrial Processes: Powering assembly lines, providing compressed air for tools, and ensuring smooth operations.
• Refrigeration and Air Conditioning Systems: Used in both residential and commercial HVAC systems to cool air.
• Automotive Industry: Used in vehicle air conditioning systems and engine cooling systems.
• Medical Equipment: Used in respiratory machines like ventilators and CPAP machines.
• Oil and Gas Industry: Used for gas compression, transportation, and processing.
• Aerospace Industry: Used in aircraft air conditioning and pressurization systems.
• Construction Industry: Powering pneumatic tools like drills, jackhammers, and nail guns.
• Oil-Free and Clean Environments: Used in industries like food processing, pharmaceuticals, and electronics manufacturing where air purity is critical.

Advantages of Rotary Compressor

Rotary compressors offer more benefits than drawbacks. Unlike reciprocating compressors that need to operate at a minimum 60 percent duty cycle, rotary compressors can run continuously. Rotary screw compressors are also quieter than their reciprocating counterparts. Additionally, they produce cooler air, which is simpler to dry. However, rotary screw compressors aren't the most efficient choice for most air applications.

The energy consumption of a rotary compressor fluctuates based on its load and unload conditions. The control method of the compressor can significantly impact the energy efficiency of the air system and the overall performance of the compressor. One basic control approach is the start/stop strategy, where the motor drives the compressor in response to a pressure switch. This strategy is best suited for smaller compressors with less than 30 horsepower.

Liquid Ring Rotary Air Compressor

A liquid ring rotary air compressor is an excellent option for numerous industrial applications due to its high efficiency and reliability. These compressors can be made from various materials and are available in both single-stage and multi-stage configurations. Some key advantages of liquid ring compressors include their low initial costs and dependable performance.

The operating principle of a liquid ring pump is straightforward. The rotor, driven by an induction motor, is mounted eccentrically within the casing. Liquid is introduced into the compressor, where centrifugal force forms a moving liquid ring. This ring fills the space between the impeller vanes, creating a compression chamber.

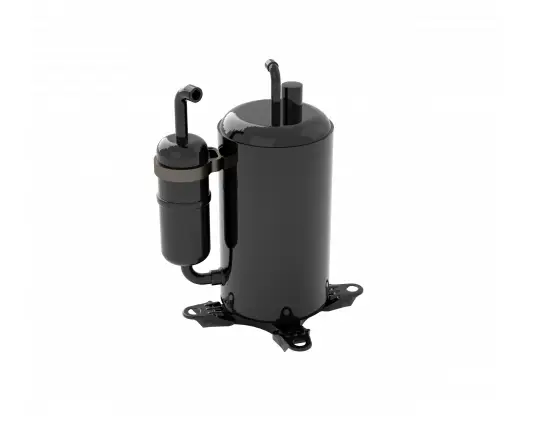

Rotary Compressors in Panasonic

Compact Compressor Design Light Weight for Greater Productivity

By utilizing the most updated technology, Panasonic Rotary Compressors are highly efficient and reliable and are well known for their compactness and lightweight.

Panasonic Rotary Compressors come in a wide range of models for multiple applications, such as air conditioners and climate control.

Features and Benefits

• Compact Compressor Design
• Lightweight for Greater AC Productivity
• High Efficiency
• Excellent Reliability

Conclusion

Rotary compressors are versatile and efficient machines that play a crucial role in various industries. Their ability to provide a continuous and stable supply of compressed air makes them ideal for a wide range of applications. With features like energy efficiency, low maintenance, and quiet operation, rotary compressors offer significant advantages over traditional compressors. Whether it's manufacturing, healthcare, or construction, rotary compressors are an essential component that enhances productivity and operational efficiency.

Frequently Ask Questions

What is a Rotary Compressor?

A rotary compressor is a widely-used device that generates compressed air. It can be categorized into oil-flooded or liquid-ring types. Both variants are versatile and can be employed across various industrial applications. Additionally, there are smaller rotary compressors available for minor industrial tasks.

What are the Disadvantages of Rotary Compressors?

The reality about rotary screw compressors isn't as positive as the industry might suggest. These machines have specific design flaws that lead to significant problems, such as air leakage, oil carryover, overheating, increased maintenance needs, and durability concerns.

Is a Rotary Compressor Better Than a Normal Compressor?

Rotary screw compressors typically outperform reciprocating compressors in terms of energy efficiency and cost. They utilize two interlocking helical screws to compress air, which provides a steadier flow of compressed air and reduces energy loss compared to the piston action in reciprocating compressors.

What is a Rotary Compressor Best Suited For?

Rotary compressors, like centrifugal and axial flow types, are ideal for applications requiring a large volume of air at low pressure.

Do Rotary Compressors Use Oil?

Both rotary screw and rotary vane compressors rely on oil for lubrication, though their mechanisms and operational traits vary. Rotary screw air compressors are a type of oil-lubricated compressor renowned for their efficiency and reliability.
