What’s a Fiber Optic Connector?

Fiber Optic Connectors

A fiber optic connector (yep, also called a termination) is what joins two ends of fiber optic cables together. These connectors keep the cables aligned inside a ferrule, which is the little end piece that does all the connecting and securing. Some ferrules are designed to plug into adapters and screw tight to stay in place. Others use a bayonet-style mechanism or just snap together.

A lot of ferrules come with spring-loaded connectors to maintain constant pressure, making the connection more reliable. Most fiber optic connectors aren’t super easy to pull apart—which is a good thing! It helps prevent accidental disconnections during setup or regular use. They can also connect cables to converters or directly into the devices the fiber optics are meant to serve.

What Are Fiber Optic Connectors Used For?

Fiber optic terminations have loads of uses, depending on the connector type. Here are some common applications:

Internet and Local Area Networks (LANs):

Fiber optic cables offer way more bandwidth than most other options. They’re often used for networking—like delivering internet or LAN connections in a building. Fiber optic cables are perfect for long distances (over 90 meters) and high-speed gigabit connections. For LANs and high-speed internet, multimode fiber optic cables are the go-to choice.

1. Telecom Closets and Media Converters

A lot of companies today still run fiber cables to telecom closets, where the signal gets converted to copper-based cables like Cat5 to connect computers and phones. But this method might become outdated soon. Why? Fiber optic technology keeps getting better, telecom closets are expensive to maintain, and fiber prices are dropping. So, it’s possible we’ll see all-fiber networks become the standard in the future.

2. Community Antenna TV (CATV) and Telecommunications

CATV and telecom companies love fiber optics for good reason—it’s cheaper over long distances, has less signal loss, and offers way more bandwidth than older tech. Plus, each fiber transmitter and receiver pair can handle way more voice and video signals. Compared to traditional wire systems, fiber can go 100 times farther and over 1,000 times faster! For these uses, single-mode fiber is often the top choice since it delivers higher bandwidth and lower signal loss.

3. Digital Telephone Service

Fiber optics are also a big deal in digital telephony. Just like with CATV, single-mode fiber is widely used in business phone systems. In fact, fiber optics are one of the top choices for telephone networks in the corporate world because of their reliability and performance.

4. Public Utility Networks

Public utilities like electric companies and water treatment facilities use fiber optics in lots of ways. For example:

• CCTV Security: Fiber-connected cameras monitor facilities in real time.
• Operational Networks: Fiber links different sites to share data on operations instantly.

Electric companies were some of the first to switch to fiber because their equipment caused too much interference with traditional wires. Even city emergency services now use fiber optics to link CCTV, wireless tech, and traffic cameras, helping responders share information seamlessly. Plus, city networks with fiber can handle loads of workers accessing the system at once—no lag!

5. Industrial Networking

Industrial businesses also favor fiber optics, especially where electromagnetic interference (EMI) is a problem. Equipment can cause major headaches for regular wires, but fiber isn’t affected by EMI.

As factories adopt smart systems with devices constantly talking to each other (and the internet), they need rock-solid connectivity. Fiber fits the bill. Connectors for these setups have to be super secure, too—vibrations from heavy machinery can’t shake them loose.

6. Military Networks

The military operates in some of the toughest conditions imaginable—battlefields, naval ships, bases, and planes. Fiber optic cables handle these challenges like a pro. They’re immune to interference, tough to tap into, and even help reduce the weight of communication systems on vehicles and aircraft.

7. Security Systems

Fiber optics are a game-changer for security systems, especially CCTV. They allow:

• Two-Way Control: Operators can adjust camera angles in real time for better surveillance.
• High Bandwidth: Multiple cameras can send signals over a single cable.
• Long-Distance Coverage: Fiber stretches far with minimal signal loss, making it perfect for large facilities like airports, cities, and warehouses.

It’s not just cameras, though. Fiber can also connect sensors and alarms for comprehensive property security.

8. Lighting

One of the coolest but often overlooked uses of fiber optics is for transferring light, not just data. This makes it perfect for lighting up spots that are tricky to reach, sensitive to heat, or even dangerous for regular electrical wiring.

Where’s this kind of lighting used? Think museum displays near fragile artifacts, inside fountains, or even swimming pools. Plus, with filters and the option to switch them automatically, you can create awesome color-changing effects that add a whole vibe to the space.

What Are the Types of Fiber Optic Connectors?

Fiber connectors vary depending on the type of cables they link. For example, single-mode fiber connectors work with single-mode cables, while multimode connectors are paired with multimode cables—it’s all about compatibility.

There are loads of electronics that need fiber optic connections, which is why there are so many types of terminations. The most common ones are LC and SC connectors. These two are so widely used that many systems are specifically designed to work with them. Here’s a breakdown of the different fiber connector types:

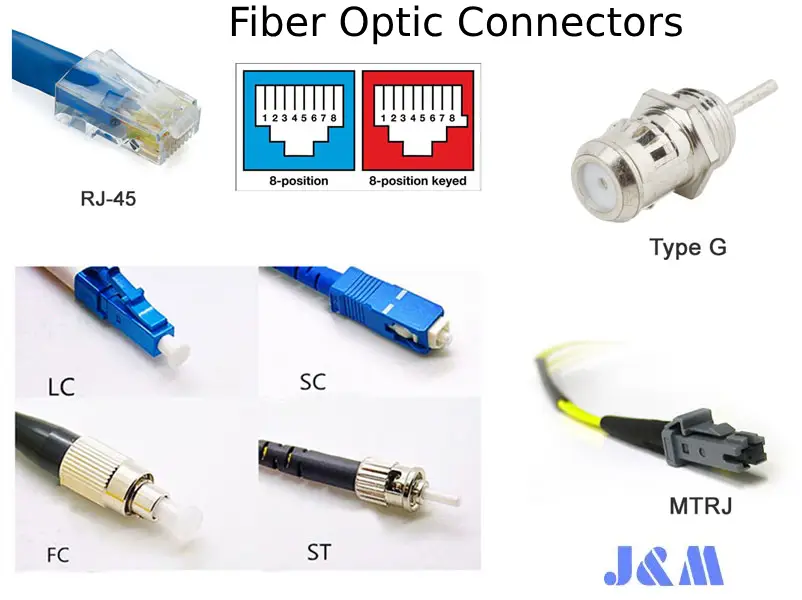

1. Lucent Connectors (LC)

LC connectors are tiny, with ferrules measuring just 1.25 mm—about half the size of an ST connector. Thanks to their compact size, they fall into the small form factor category. LC connectors are a solid choice for both single-mode cables and multimode transceivers.

2. Standard Connectors (SC)

SC connectors have a 2.5 mm ferrule that clicks securely into place with a simple push-and-pull action. These connectors offer high performance and, over the years, have become more affordable. Originally designed to replace ST connectors, SC connectors are now a favorite for telecom and data communication systems.

3. ST Connectors

ST connectors are among the oldest types of fiber optic connectors, originally an AT&T design. They were super popular up until around 2005 but have since been replaced by newer options like SC connectors.

ST connectors have a 2.5 mm ferrule with a bayonet-style connection and a spring-loaded design. While the spring-loading can make installation a bit tricky, the keyed slot helps align the ferrules properly. These connectors are still used in budget-friendly projects because of their low cost.

4. Ferrule Core (FC) Connectors

Before LC and SC connectors came along, FC connectors were the go-to for single-mode connections. They use a screw-in ferrule design, which takes more time and effort to secure than snap-in SC connectors.

The screw-in style ensures a super secure connection, even in environments with lots of movement or if the cable gets tugged. FC connectors are often used in applications like video over fiber, where a stable and uninterrupted data flow is critical.

Like ST and SC connectors, FC connectors use a 2.5 mm ferrule, and hybrid adapters can bridge FC connectors with other types.

5. Multi-Position Optical (MPO) Connectors

MPO connectors are designed for ribbon cables with multiple fibers. A commercial version, called MTP, is specifically made for high-performance applications, while MPO is used for more mechanical setups.

These connectors can have 2–6 rows of 12 or 16 fibers. For example, MPO connectors with 12 fibers per row typically have two rows, while those with 16 fibers per row max out at two rows. Pins and holes align the ferrules, allowing the fibers to mate with another cable or device. You’ll usually find MPO connectors in high-speed links or pre-terminated cable bundles.

6. MT-RJ Connectors

MT-RJ connectors have mostly gone out of use, but you might still encounter them in older systems needing repairs. They only work with multimode cables and duplex fibers, with both fibers housed in a single ferrule. These connectors use pins and holes to align the connection, similar to MPO connectors, and even have plug-and-jack versions in some cases.

What Are the Advantages and Disadvantages of Fiber Connectors?

Fiber connectors come with their own set of pros and cons, depending on the model. To pick the right one, it’s essential to weigh the pros and cons against your specific application needs and installation setup. Here’s a quick breakdown:

LC Connectors: Pros & Cons

Pros:

• Small and compact, making them perfect for crowded spaces like networking and transceivers.
• Can easily switch between simplex and duplex with a clip.
• Tough to accidentally pull out, which ensures a secure connection.

Cons:

• The tiny size can be frustrating when trying to disconnect them, especially in dense setups.
• You might need a special extractor tool to remove them from cramped spots.

SC Connectors: Pros & Cons

Pros:

• The square ferrule design makes it easier to arrange in tight spaces.
• Secure connections that won’t be disrupted if the cable gets tugged.
• Can connect with FC or ST connectors using a hybrid adapter.

Cons:

• The larger ferrule size takes up more room compared to compact options like LC connectors.
• Not the best choice for extremely crowded spaces where smaller designs are needed.

ST Connectors: Pros & Cons

Pros:

• A classic design, still used in many older multimode fiber systems.
• Easy push-and-twist installation for the spring-loaded ferrule.

Cons:

• Installing them takes more time than other connectors.
• The spring-loaded design can sometimes cause connection issues if the cable is pulled.
• In tight spaces, seating and twisting these connectors can be a hassle.

FC Connectors: Pros & Cons

Pros:

• Excellent for environments where stability is crucial, like industrial settings or ships.
• The screw-in design keeps the connection steady even in rough conditions.

Cons:

• Installation takes longer because of the screw mechanism.
• The round shape and need for extra space make them harder to stack in dense setups compared to square SC connectors.

MTP/MPO Connectors: Pros & Cons

Pros:

• Can bundle multiple fibers into one connector, saving a ton of space in high-density setups.
• Some MTP connectors allow for easy repolishing or swapping out the exterior housing.

Cons:

• Cleaning these connectors can be tricky, especially because of the high number of fibers packed into a single unit.

MT-RJ Connector: Pros & Cons

Disadvantages:

• MT-RJ connectors are rare, which makes finding them or troubleshooting more difficult.
• Field testing is tricky and not as straightforward as other connectors.
• Installation is more complex because it requires polishing and splicing, similar to single-mode cable setups.

Because of these challenges, most technicians opt for more common multimode connectors that are easier to install and maintain.

Choosing the Right Fiber Connector

Picking the right connector isn’t just about the cable—it’s also about the application and equipment involved. Using a fiber optic connector chart can help match connectors with cables. Start by asking these questions:

1. Is the Cable Single-Mode or Multimode?

Fiber optic cables come in two main types: single-mode and multimode.

• Single-Mode Cables:Feature a tiny 9-micron core where light travels in a single, focused path.Designed for long distances with minimal loss and very high bandwidth (up to 100,000 GHz).Common in CATV and telephony applications.
• Multimode Cables:Have a wider 50-micron core to carry multiple light rays (modes).Best for shorter distances like LANs and other local networks.

How to Identify Them:

• Single-mode cables often have yellow or blue jackets.
• Multimode cables are usually orange, aqua, or bright green. Military versions may also use plain green or slate colors.

Pro tip: Different brands might use unique color schemes, so check with the manufacturer to confirm.

2. Matching Connectors to Cable Type

Connectors also come in single-mode and multimode versions. For instance, SC connectors are available in both types. To identify connector types, look at their color codes:

• Beige: Multimode connectors.
• Blue: Single-mode with Ultra Physical Contact (UPC).
• Green: Single-mode with Angled Physical Contact (APC).

For single-mode cables, choosing between UPC and APC connectors depends on the project’s requirements.

Need more help sorting through fiber connectors? Let me know!

What Type of Physical Contact Do Single-Mode Connectors Use?

The type of connection for single-mode cables really matters. These days, most single-mode connectors use physical contact (PC). Some PC connectors have slightly convex ends that increase the contact area between the cable cores. This design helps reduce both loss and reflectance, which is why it’s often called ultra-physical contact (UPC).

For even better performance, some single-mode connectors are angled at 8 degrees. These are called angled physical contact (APC) connectors. The angled design minimizes reflectance even more than UPC, making it a top choice for CATV and similar high-precision applications.

What Connector Does Your Device Need?

Finally, think about what kind of connector your equipment requires. Check the device’s input type and use that info to choose the right fiber connector for your cables.
