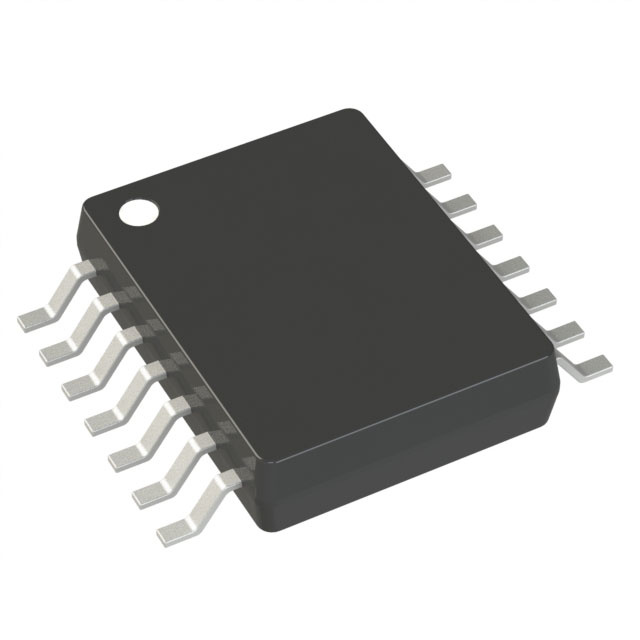

Product Description: Analog Technologies ADA4522-4ARUZ

The ADA4522-4ARUZ is a high-precision, low-power, low-noise operational amplifier manufactured by Analog Devices. It is particularly suitable for analog circuits that require high accuracy and stability. This chip offers excellent input bias current, low distortion, and a wide operating voltage range, making it ideal for various industrial and consumer electronics applications.

Product Features:

• Low Input Bias Current: As low as 1 pA, ideal for high-precision applications.
• Low Noise Characteristics: Input noise density is only 1.8 nV/√Hz at 1 kHz, suitable for low-noise signal processing.
• Wide Operating Voltage Range: Supports single-supply operation with a voltage range from 2.7 V to 36 V, accommodating various power supply requirements.
• High-Precision Performance: Input voltage offset as low as 25 µV (max), ensuring precise signal processing.
• Low Power Consumption: Designed with advanced technology, with a current consumption of only 1.2 mA, suitable for low-power systems.
• High Common-Mode Rejection Ratio (CMRR): Up to 120 dB, providing excellent common-mode signal rejection.
• Rail-to-Rail Output: Delivers full output swing from the supply rails to ground, ensuring a wide output range.

Applications:

• Precision Measurement Instruments: The ADA4522-4ARUZ is used in precision measurement devices such as sensor signal conditioning and data acquisition systems.
• Industrial Control: Suitable for industrial automation control systems requiring high-accuracy and stable amplification, such as temperature, pressure, and flow sensor interfaces.
• Medical Devices: Used in medical equipment for high-precision signal processing and noise suppression, such as in ECG (electrocardiogram) amplifiers.
• Audio Amplifiers: Due to its low noise characteristics, the ADA4522-4ARUZ is ideal for audio applications like audio signal processing and sound enhancement systems.
• Automotive Electronics: Used in automotive sensor systems, including battery management and power sensor amplifiers.

Frequently Asked Questions (FAQs):

1. What power supply voltage range is suitable for the ADA4522-4ARUZ?

The ADA4522-4ARUZ supports single-supply operation, with a voltage range from 2.7 V to 36 V, making it compatible with a wide range of power configurations.

2. Is the ADA4522-4ARUZ suitable for low-power designs?

Yes, the ADA4522-4ARUZ has a very low power consumption of only 1.2 mA, making it ideal for low-power systems such as portable devices and wireless sensors.

3. How is the noise performance of this amplifier?

The ADA4522-4ARUZ features extremely low noise performance, with an input noise density of 1.8 nV/√Hz at 1 kHz, making it suitable for noise-sensitive applications such as audio amplifiers and precision measurements.

4. Does the ADA4522-4ARUZ support Rail-to-Rail output?

Yes, the ADA4522-4ARUZ supports Rail-to-Rail output, meaning it can provide a full output swing from the supply rails to ground, ensuring maximum dynamic range for signals.

5. Is the ADA4522-4ARUZ suitable for precision sensor signal processing?

Yes, with its low bias current and high common-mode rejection ratio, the ADA4522-4ARUZ is excellent for high-precision sensor signal conditioning, especially in applications requiring low noise and high accuracy.
