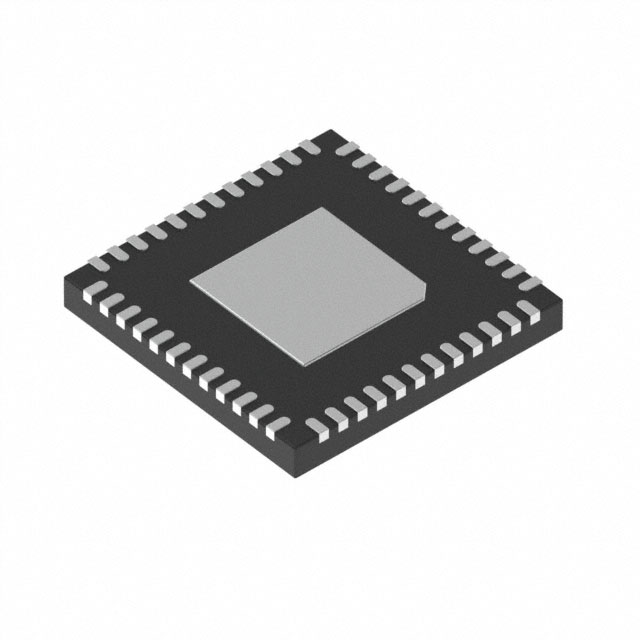

Product Description: Microchip Technology KSZ9031RNXIA

The Microchip Technology KSZ9031RNXIA is a high-performance, low-power, single-port Ethernet PHY (Physical Layer) device designed to provide efficient and reliable data transmission in Ethernet-based communication systems. It supports 10/100/1000 Mbps Ethernet speeds, making it suitable for a wide range of applications including industrial automation, embedded systems, and networking. The KSZ9031RNXIA features advanced power management, robust electromagnetic interference (EMI) protection, and an efficient interface to connect microcontrollers and processors to Ethernet networks.

Product Features:

• Ethernet Speed Support: The KSZ9031RNXIA supports 10/100/1000 Mbps Ethernet speeds, making it compatible with both legacy and high-speed Ethernet networks.
• Low Power Consumption: The device is designed with low-power operation in mind, offering multiple low-power modes to reduce energy consumption in embedded systems and networked devices.
• Integrated Transformer Driver: The KSZ9031RNXIA includes an integrated transformer driver for the Ethernet interface, which simplifies the design and reduces component count.
• Automotive and Industrial Grade: With a wide operating temperature range of -40°C to +85°C, the device is designed for use in automotive and industrial applications, where durability and reliability under extreme conditions are crucial.
• Advanced Power Management: The device includes features like low-power idle mode and automatic power down when the Ethernet link is not active, optimizing power consumption.
• EMI and ESD Protection: The KSZ9031RNXIA includes EMI suppression and ESD protection to ensure reliable operation in environments with high electrical noise and transient voltages.
• Flexible Interface Options: The PHY supports a MII (Media Independent Interface) or RMII (Reduced Media Independent Interface) for easy connection to the MAC (Media Access Controller) in a system.
• Integrated LED Indicators: Built-in LED indicator drivers provide status information for the Ethernet link, speed, and activity, allowing for simple diagnostics and monitoring.
• Small Footprint: The device is packaged in a QFN-32 (Quad Flat No-lead) package, providing a compact and space-efficient solution for modern electronics.
• Jumbo Frame Support: The KSZ9031RNXIA supports Jumbo frames (up to 9 KB), allowing it to handle large packets in high-performance networking applications.

Applications:

• Industrial Automation: The KSZ9031RNXIA is ideal for industrial control systems, such as SCADA (Supervisory Control and Data Acquisition) systems, where robust and reliable Ethernet communication is needed for data collection and control operations.
• Embedded Systems: It is commonly used in embedded systems where microcontrollers or processors need to interface with Ethernet networks for remote monitoring, control, or communication.
• Networking Equipment: The device is well-suited for use in network routers, switches, and access points that require high-speed Ethernet connectivity for data transmission across local area networks (LANs).
• IoT (Internet of Things): The KSZ9031RNXIA is a popular choice for IoT devices needing a wired Ethernet connection for stable and fast communication, particularly in smart home systems, security, and environmental monitoring applications.
• Automotive Networking: The device's wide temperature range makes it suitable for automotive Ethernet, used in modern in-car networks for communication between sensors, cameras, infotainment systems, and control units.
• Medical Devices: The high reliability and low-power characteristics make the KSZ9031RNXIA suitable for medical equipment where Ethernet-based connectivity is required for device monitoring and data transmission.

Frequently Asked Questions (FAQs):

1. What Ethernet speeds does the KSZ9031RNXIA support?
The KSZ9031RNXIA supports 10/100/1000 Mbps Ethernet speeds, ensuring compatibility with both legacy and modern Ethernet networks.

2. Can the KSZ9031RNXIA be used in low-power applications?
Yes, the KSZ9031RNXIA is designed for low-power operation, with features like low-power idle mode and automatic power down when the link is not active, making it ideal for energy-efficient embedded systems.

3. What interfaces are supported by the KSZ9031RNXIA?
The device supports both MII (Media Independent Interface) and RMII (Reduced Media Independent Interface), which can be used to interface the Ethernet PHY with the MAC in various systems.

4. What kind of protection does the KSZ9031RNXIA provide against electrical noise?
The KSZ9031RNXIA includes EMI suppression and ESD protection, making it suitable for environments with high electromagnetic interference and voltage transients.

5. What is the operating temperature range of the KSZ9031RNXIA?
The device operates within a wide temperature range of -40°C to +85°C, making it suitable for industrial and automotive applications that require reliable operation in extreme conditions.

6. What is the package type of the KSZ9031RNXIA?
The KSZ9031RNXIA is available in a 32-pin QFN (Quad Flat No-lead) package, offering a compact form factor for space-constrained designs.

7. Does the KSZ9031RNXIA support jumbo frames?
Yes, the KSZ9031RNXIA supports jumbo frames up to 9 KB, enabling efficient handling of larger packets in high-performance networking applications.

8. Can the KSZ9031RNXIA be used in automotive applications?
Yes, with its wide operating temperature range and high reliability, the KSZ9031RNXIA is well-suited for use in automotive Ethernet networks for communication between in-vehicle sensors and control units.
