What is an Analog Front End？

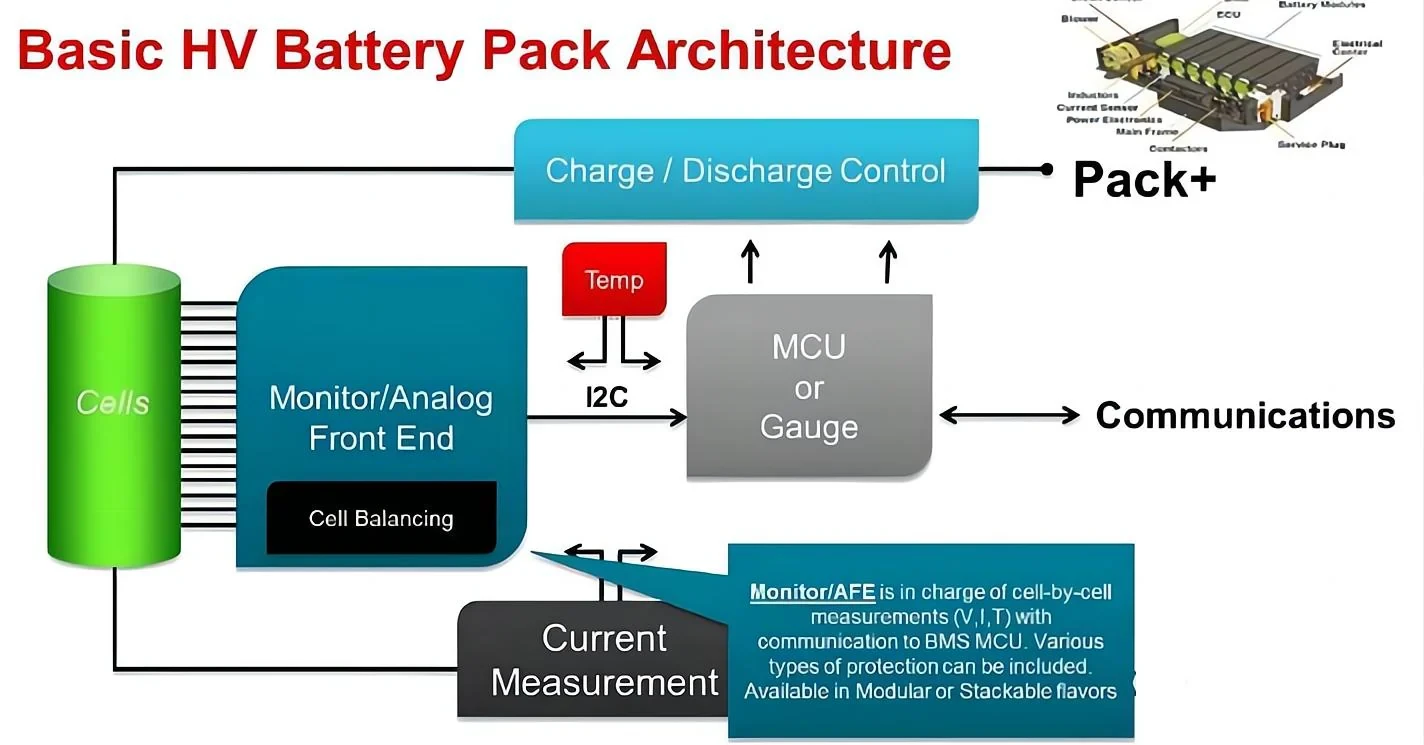

To monitor the voltage and temperature of battery cells, a BMS AFE (Battery Management System Analog Front-End) chip is required. The AFE is a multi-sample channel monitoring chip capable of measuring cell voltage and temperature. These analog front-end chips typically include 16-bit ADCs, high-precision voltage references, high-voltage multiplexers, and an SPI interface. They are commonly used in applications such as electric vehicles, high-voltage mobile equipment, backup battery systems, and high-voltage data acquisition systems.

Use Cases:

Sensor Interfaces: AFEs are vital for a variety of sensors like temperature, pressure, accelerometers, and photodetectors, helping to adjust sensor outputs for digital processing systems.
Radio Frequency (RF) Front End: In radio receivers, the RF AFE manages tasks like signal reception, filtering, and amplification.
Health Monitoring Devices: AFEs are integral in wearable health devices, ECG monitors, and pulse oximeters.
Smart Meters: AFEs connect with energy, water, and gas meters, converting analog measurements into digital signals.
