IR21271 - Infineon Technologies

Overview

The IR21271 is a high voltage, high-speed power MOSFET and IGBT driver designed for robust monolithic construction using proprietary HVIC and latch immune CMOS technologies. It is fully operational up to +600V and tolerant to negative transient voltage. The IR21271 is designed with a floating channel for bootstrap operation and is application-specific for motor drive and automotive applications, with a gate drive range of 9 to 20V.

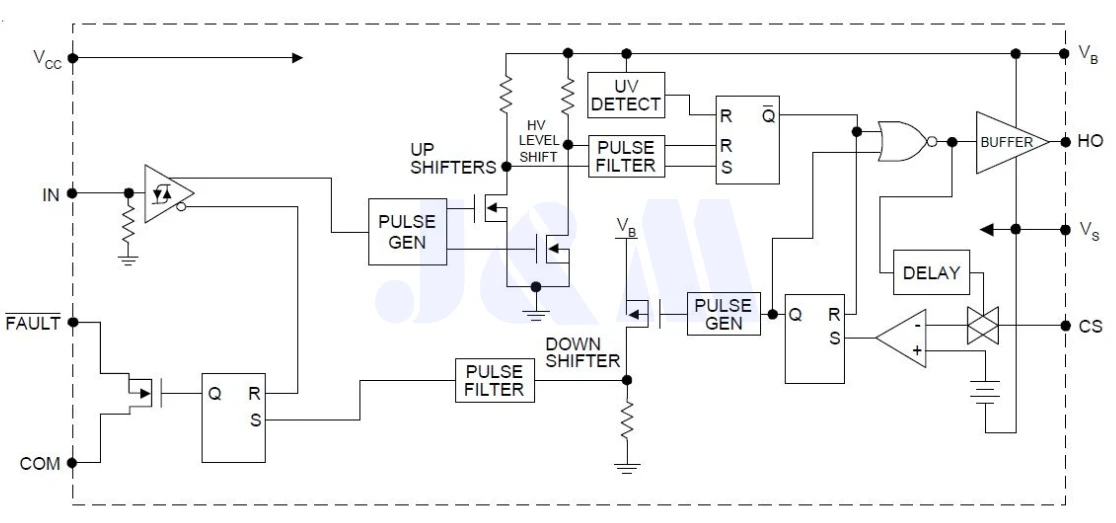

Diagrams：

Key Features

• Floating Channel: Designed for bootstrap operation and capable of operating up to 600 volts.
• Gate Drive Range: Specifically tailored for automotive applications with a 9 to 20V range.
• Input Logic Compatibility: Compatible with 3.3V, 5V, and 15V input logic.
• Protection Circuitry: Includes over-current detection in the driven power transistor with termination of gate drive voltage.
• FAULT Signal: An open-drain FAULT signal indicates an over-current shutdown.
• Output Driver: Features a high pulse current buffer stage for minimum cross-conduction.
• Lead-Free Availability: Can be availed in lead-free packaging options.

Electrical Characteristics

• VB (High Side Floating Supply Voltage): 9V to 20V
• VCC (Logic Supply Voltage): 10V to 20V
• VIN (Logic Input Voltage): 0V to VCC
• VFLT (FAULT Output Voltage): 0V to VCC
• VCS (Current Sense Signal Voltage): VS to VS + 5V
• dVs/dt (Allowable Offset Supply Voltage Transient): 50 V/ns
• Thermal Resistance (RthJA): 200°C/W (for 8-Lead SOIC package)

Absolute Maximum Ratings

• VB (High Side Floating Supply Voltage): -0.3V to 625V
• VS (High Side Floating Offset Voltage): -25V to VB + 0.3V
• VHO (High Side Floating Output Voltage): VS - 0.3V to VB + 0.3V
• VCC (Logic Supply Voltage): -0.3V to 25V
• VIN (Logic Input Voltage): -0.3V to VCC + 0.3V
• VFLT (FAULT Output Voltage): -0.3V to VCC + 0.3V
• VCS (Current Sense Voltage): VS - 0.3V to VB + 0.3V

Package Options

• 8-Lead PDIP
• 8-Lead SOIC

Ordering Information

• IR21271 (8-Lead PDIP)
• IR21271PbF (8-Lead PDIP, Lead-Free)
• IR21271S (8-Lead SOIC)
• IR21271SPbF (8-Lead SOIC, Lead-Free)

Applications

• Motor Drives: Specifically designed for motor drive applications.
• Automotive: Suited for automotive applications within the specified voltage range.
